Dual-Rated Lugs#YA-A

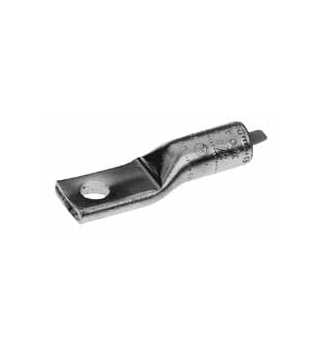

HYLUG UNINSULATED ALUMINUM COMPRESSION TERMINAL / 1-HOLE DESIGN / AL9CU

General Details

Type YA-A aluminum tin-plated compression HYLUG™ terminals are dual-rated and designed for use on both aluminum and copper
conductors from #12 sol. through 2000 kcmil. They are designed for heavy duty applications to 35kV. YA-A terminals are prefilled with PENETROX™, and assembled with colorcoded end caps. The aluminum HYLUG™ terminals are designed for a permanent troublefree electrical termination.

Features & Benefits
• Aluminum terminals are dual rated to accommodate both copper and aluminum
wire and are indicated with AL-CU on the connector
• AL9CU indicates the terminal can accommodate aluminum and copper wire and is UL Listed 90ºC, up to 35kV
• AL7CU indicates the terminal can accommodate aluminum and copper wire and is UL Listed 75ºC, up to 35kV
• Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the wire strands during insertion
• 45º and 90º angular lugs are available; please contact Customer Service
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Connectors are clearly marked with wire size, die index, color code, and crimp locations bands
• Factory pre-filled with PENETROX™ A13 oxide inhibitor
• Color coded end caps are factory inserted in the barrels to match the die color code; prevent foreign materials from entering the barrel
• Aluminum oxidation is not easily detected but causes resistance in a connection; it is imperative the proper preparation takes place prior to making an aluminumto-aluminum connection

YA12A-TN 12 Str. #10 1 0.41 0.50 1.19 0.20 0.07 0.30 MR8-27 (1) — — — 5/8
YA10A-TN 10 Str. #10 1 0.41 0.50 1.22 0.20 0.06 0.30
YA8CA1 8 AWG #10 1 0.53 0.60 1.50 0.20 0.09 0.40 MY29-3 (1)
MRC840AL (1) Y / PAT81KFT (1) U8CABT
YA8CA3 1/4 1 0.53 0.75 1.65 0.25 0.09 0.50 (1) Blue 374 5/8
YA6CA1 6 AWG 1/4 1 0.47 0.75 1.84 0.33 0.14 0.42 MY29-3 (1)
YA6CA3 3/8 1 0.65 1.19 2.28 0.44 0.09 0.75 (1) Gray 346 3/4
YA4CA1
YA4CA3 5/16 1 0.80 0.87 2.25 0.41 0.12 0.46 (1) Green 375 7/8
YA4CA6 3/8 1 0.80 0.94 2.32 0.44 0.12 0.50
YA2CA5
YA2CA1 5/16 1 0.88 0.88 2.50 0.41 0.16 0.47 (1) Pink 348 1-1/8
YA2CA3 3/8 1 0.88 0.94 2.56 0.44 0.16 0.50
YA1CA1 1 AWG 3/8 1 0.76 1.19 2.59 0.44 0.19 0.75 MY29-3 (1)
YA25A1
YA25A3 3/8 1 0.82 1.18 2.67 0.63 0.21 0.55 (1) Tan 296 1-1/16
YA25A9 1/2 1 1.03 1.34 2.83 0.63 0.17 0.71
YA26A6 2/0 AWG 3/8 1 0.67 1.89 2.79 0.44 0.24 0.74 MY29-3 (2)
YA26A1 1/2 1 1.03 1.36 3.03 0.63 0.20 0.73 (2) Olive 297 1-3/8
YA27A1 3/0 AWG 3/8 1 0.73 1.18 2.88 0.44 0.26 0.74 MY29-3 (2)
YA27A3 1/2 1 1.04 1.37 3.27 0.63 0.26 0.74 (2) Ruby 467 1-1/2
YA28A1 4/0 AWG 3/8 1 1.17 1.18 3.26 0.44 0.30 0.74 MY29-3 (2)
YA28A3 1/2 1 1.17 1.36 3.44 0.63 0.30 0.73 (2) White 298 1-5/8
YA29A9 250 kcmil
U29ART
YA29A1 1/2 1 1.26 1.36 3.53 0.63 0.33 0.73 U29ART
YA30A6 300 kcmil
YA30A1 1/2 1 Blue 470 1-3/4
YA31A1
YA32A9
YA32A3 1/2 2 1.62 3.11 6.15 0.63 0.43 0.73 2
YA32A1 5/8 1 1.62 1.88 4.92 0.88 0.43 1.00 2 1/2
YA34A1
YA36A1
YA39A1 700 – 750— Y / PAT644 (1)Y / PAT81KFT (4)
U39ART-2
YA39A3 5/8 1 2.05 1.88 5.80 0.88 0.43 1.00
YA39A34 3/4 1 2.05 2.19 6.17 1.00 0.43 1.19
YA42A1 900 kcmil AL600 kcmil
— Y / PAT644 (2) U42ART
YA42A3 5/8 1 2.14 1.36 5.32 0.66 0.39 1.00 (4)^ Gray 303 2 7/8
YA44A1
