COPPER CRIMPIT C-TAPS

Category:
产品介绍

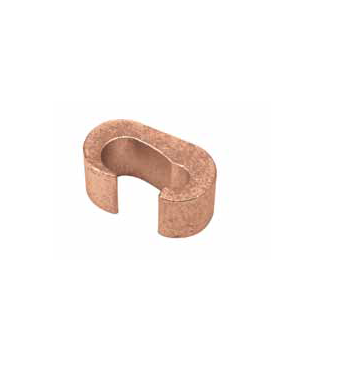

C-TAP COPPER CRIMPIT™

• Range taking C-Tap that allows for less inventory as one C-tap can accommodate a multitude of wire combinations
• Accommodates a wide range of run/tap combinations
• Manufactured from high conductivity wrought copper providing low resistance for excellent electrical conductivity
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Each connector has a recommended UL Listed / CSA Certified insulating cover available in both black and clear (see table below); clear cover allows for easy inspection of the connection (see separate page for details on Type CCF-FR and CFR-FR Covers)
• Connectors clearly marked with color coding

YCHC44TC44 CCFR-FR CFR-FR 1000-750
YCHC39TC39 CCFR-FR CFR-FR 750-500
YCHC39TC31 CCFR-FR CFR-FR 750-500
YCHC39TC2 CCFR-FR CFR-FR 750-500
YCHC34TC34 CCFN-FR CFN-FR 500-4/0
YCHC34TC29 CCFN-FR CFN-FR 500-4/0
YCHC34TC2 CCFN-FR CFN-FR 500-4/0
YCHC29TC29 CCFDXFR CFD-FR 250-2
(4/0-2) — — — — U997 1 U997 1 Orange 997 2.12 .98 0.94 1″
YCHC29TC2 CCFD-FR CFD-FR 250-2
YCHC2TC2 CCFO-FR CFO-FR 2-6 Str./Sol.
(8-14) — U-C 1 U-C 1 U-C 1 Brown C 1.22 .60 0.81 1″
YCHC8TC8

Features & Benefits

• Wide range of run/tap combinations including Class B code I and locomotive flexible conductor combinations. All (B/B, B/I, I/I) combinations are recommended
◊ Each connector accommodates many cable combinations, allowing maximum flexibility for the design and installation of a system
• Color-coded on the connector that matches the die
◊ Provides matched system for fast and easy installation
• Each connector has a recommended insulating cover available. Flame retardant type
CF-FR covers meet oxygen index 28 and UL94 V-O requirements
◊ A complete insulated UL Listed installation is provided
• Die index embossed on connector after completion of crimp
◊ Permanent inspectability of installed connector is insure consistently reliable and dependable connections
