YAEV-RS | 绝缘无缝端子

Nylon-Insulated Right-Angle Terminals 600 Volts Max., max to 2/0 cable size

General Details

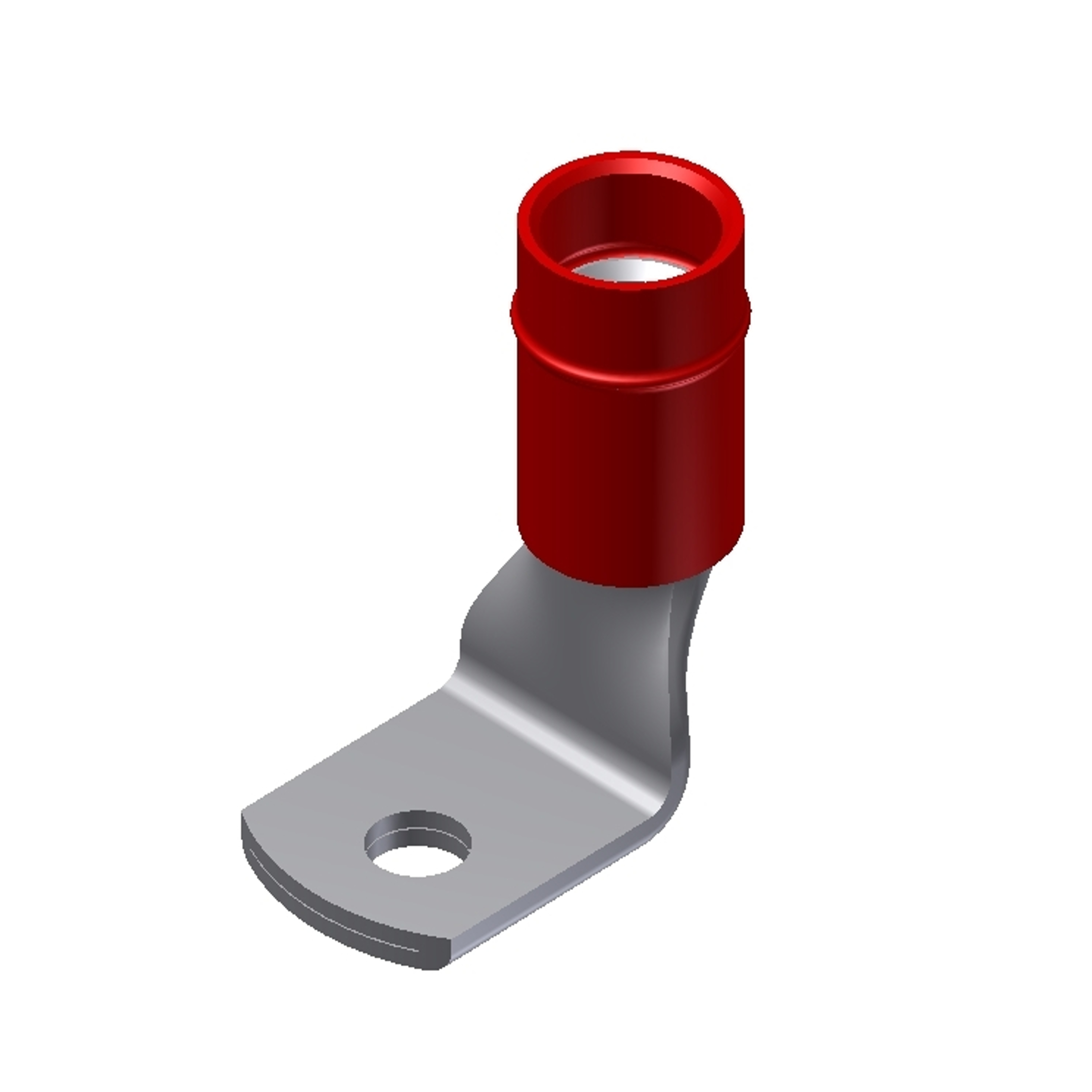

Factory formed right angle INSULUG™ connectors made of seamless pure copper tubing. These rugged terminals withstand the most severe applications. Inspection hole in barrel permits visual check of wire insertion. Meets requirements of SAE-AS7928.

YAEV8C-RS 8 Max. Insul. Dia.: .258″ Sleeve Color: Red
YAEV8C-RS1 1/4 0.25 0.41 0.28 0.84 1.25 A DEV8L Y29PLE-1 7/16″
YAEV6C-RS1 6 Max. Insul. Dia.: .313″ Sleeve Color: Blue
YAEV6C-RS 1/4 0.25 0.50 0.28 0.88 1.28 B DEV6L Y29PLE-1 1/2″
YAEV4C-RS 4 Max. Insul. Dia.: .374″ Sleeve Color: Yellow
YAEV4C-RS2 3/8 0.31 0.62 0.34 1.02 1.28 C DEV4L Y29PLE-1 1/2″
YAEV2C-RS1 2 Max. Insul. Dia.: .459″ Sleeve Color: Red
YAEV2C-RS 3/8 0.33 0.68 0.34 1.13 1.59 D DEV2L Y29PLE 5/8″
YAEV1C-RS2 1 Max. Insul. Dia.: .516″ Sleeve Color: White
YAEV1C-RS 3/8 0.33 0.73 0.34 1.22 1.65 E DV26L Y29PLE 5/8″
YAEV25-RS Sleeve Color: Blue
YAEV26-RS 2/0 3/8 0.39 0.92 0.47 1.48 2.06 G DEV26 Y29PLE 13/16″

Features and Benefits
