GROUNDLINK™

General Details

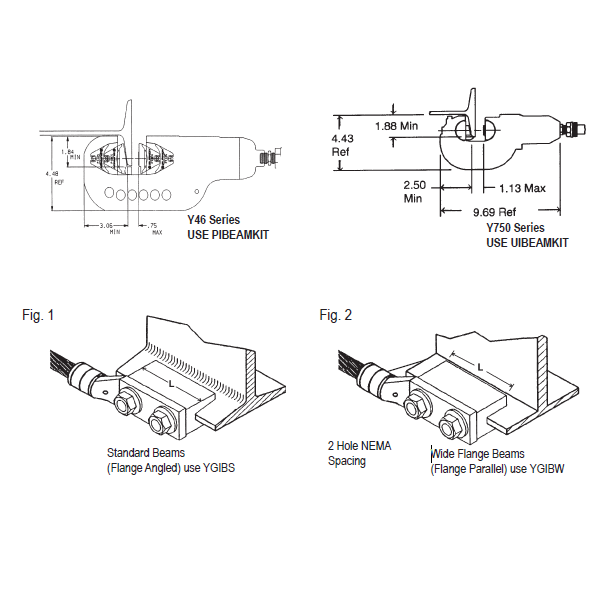

An irreversible compression ground connection which allows attachment to a structural steel standard (angled) or wide flange (parallel) beam. Installed with a required 5-piece die set, Catalog PIBEAMKIT or UIBEAMKIT. Die index 1105. GROUNDLINK™ connectors are made of highconductivity wrought copper and come pre-filled with PENETROX™ E compound and strip sealed. Order terminal mounting hardware separately.

Catalog Number Copper Conductor Size Fig. # L J I-Beam Flange Thickness Suggested Terminals T Copper Conductor Terminal
YGIBS28-338-2N 2 AWG-4/0 AWG 1 3.00 1/2-13 0.250″ – 0.338″ #2 Str. AWG YGHA2C-2N 0.26 1/0 Str. AWG YGHA25-2N 0.19
YGIBW28-338-2N 2 AWG-4/0 AWG 2 3.00 1/2-13 2/0 Str. AWG YGHA26-2N 0.26 4/0 Str. AWG YGHA28-2N 0.30
YGIBS34-338-2N 250 kcmil-500 kcmil 1 6.00 1/2-13 250 kcmil YGHA29-2N 0.34 0.40
YGIBW34-338-2N 250 kcmil-500 kcmil 2 6.00 1/2-13 500 kcmil YGHA34-2N 0.34 0.40
YGIBS28-400-2N 2 AWG-4/0 AWG 1 3.00 1/2-13 0.338″ – 0.400″ #2 Str. AWG YGHA2C-2N 0.26 1/0 Str. AWG YGHA25-2N 0.19
YGIBW28-400-2N 2 AWG-4/0 AWG 2 3.00 1/2-13 2/0 Str. AWG YGHA26-2N 0.26 4/0 Str. AWG YGHA28-2N 0.30
YGIBS34-400-2N 250 kcmil-500 kcmil 1 6.00 1/2-13 250 kcmil YGHA29-2N 0.34 0.40
YGIBW34-400-2N 250 kcmil-500 kcmil 2 6.00 1/2-13 500 kcmil YGHA34-2N 0.34 0.40
YGIBS28-462-2N 2 AWG-4/0 AWG 1 3.00 1/2-13 0.400″ – 0.462″ #2 Str. AWG YGHA2C-2N 0.26 1/0 Str. AWG YGHA25-2N 0.19
YGIBW28-462-2N 2 AWG-4/0 AWG 2 3.00 1/2-13 2/0 Str. AWG 4/0 Str. AWG
YGHA26-2N
YGHA28-2N 0.26 0.30
YGIBS34-462-2N 250 kcmil-500 kcmil 1 6.00 1/2-13 250 kcmil YGHA29-2N 0.34 0.40
YGIBW34-462-2N 250 kcmil-500 kcmil 2 6.00 1/2-13 500 kcmil YGHA34-2N 0.34 0.40
YGIBS28-550-2N 2 AWG-4/0 AWG 1 3.00 1/2-13 0.462″ – 0.550″ #2 Str. AWG YGHA2C-2N 0.26 1/0 Str. AWG YGHA25-2N 0.19
YGIBW28-550-2N 2 AWG-4/0 AWG 2 3.00 1/2-13 2/0 Str. AWG YGHA26-2N 0.26 4/0 Str. AWG YGHA28-2N 0.30
YGIBS34-550-2N 250 kcmil-500 kcmil 1 6.00 1/2-13 250 kcmil YGHA29-2N 0.34 0.40
YGIBW34-550-2N 250 kcmil-500 kcmil 2 6.00 1/2-13 500 kcmil YGHA34-2N 0.34 0.40
YGIBS28-613-2N 2 AWG-4/0 AWG 1 3.00 1/2-13 0.550″ – 0.613″#2 Str. AWG YGHA2C-2N 0.26 1/0 Str. AWG YGHA25-2N 0.19
YGIBW28-613-2N 2 AWG-4/0 AWG 2 3.00 1/2-13 2/0 Str. AWG YGHA26-2N 0.26 4/0 Str. AWG YGHA28-2N 0.30
YGIBW34-613-2N 250 kcmil-500 kcmil 2 6.00 1/2-13 500 kcmil YGHA34-2N 0. 34 0.40
YGIBS28-675-2N 2 AWG-4/0 AWG 1 3.00 1/2-13 0.613″ – 0.675″ #2 Str. AWG YGHA2C-2N 0.26 1/0 Str. AWG YGHA25-2N 0.19
YGIBW28-675-2N 2 AWG-4/0 AWG 2 3.00 1/2-13 2/0 Str. AWG YGHA26-2N 0.26 4/0 Str. AWG YGHA28-2N 0.30
YGIBS34-675-2N 250 kcmil-500 kcmil 1 6.00 1/2-13 250 kcmil 500 kcmil YGHA29-2N 0.34 0.40
YGIBW34-675-2N 250 kcmil-500 kcmil 2 6.00 1/2-13 500 kcmil YGHA34-2N 0.34 0.40
YGIBW28-750-2N 2 AWG-4/0 AWG 3 3.00 1/2-13 0.690″ – 0.750″ 4/0 Str. AWG YGHA28-2N 0.30
YGIBW28-1000-2N 2 AWG-4/0 AWG 3 3.00 1/2-13 1.000″ -1.060″ 2/0 Str. AWG YGHA2C-2N 0.26 4/0 Str. AWG YGHA28-2N 0.30

Certification

UL467/UL486A/IEEE837/DB/CSA
