HandyBug Split Bolt

HandyBug split bolt grounding Connector.

  1. General Details

    HandyBug™ Connector

    该款融合了数十种产品的特点和优点,灵活多用途,可实现支接、拼接和端接的各种接地连接:拼接两条电缆,支接电缆或者做为终端连接,比如将电缆连接到铜排上,将电缆连接到管材上等多种接地应用。符合美国直埋标准,直接埋于地下数十年而无需更换。

    Tap, Splice or Terminate connection
    The HandyBug™ connector is an “all-in-one” electrical connector that can be used for dozens of different power or grounding connection applications. This new connector is the “survival tool” of electrical connections and can be used as a splice, tap, terminal, wire to pipe, wire to busbar, and many other options. The HandyBug™ incorporates the features and benefits of dozens of different products. Available in two sizes, these connectors accommodate from #8 AWG Solid to 1/0 AWG Stranded.

    Ideal for emergency repairs, maintenance crews and technicians, and an essential part of every electrician’s basic supplies. cULus Listed. Acceptable for direct burial in earth and concrete.

    SB232TC14 Stranded 8 AWG – 2 AWG Solid 8 AWG – 2 AWG stud dia 3/8 – 16
    SB232TC38 Stranded 8 AWG – 2 AWG Solid 8 AWG – 2 AWG stud dia 3/8 – 16
    SB23U* Stranded 8 AWG – 2 AWG Solid 8 AWG – 2 AWG stud dia 3/8 – 16
    SB252TC14 Stranded 2 AWG – 1/0 AWG Solid 2 AWG – 1/0 AWG stud dia 1/2 – 13
    SB252TC38 Stranded 2 AWG – 1/0 AWG Solid 2 AWG – 1/0 AWG stud dia 1/2 – 13
    SB25U* Stranded 2 AWG – 1/0 AWG Solid 2 AWG – 1/0 AWG stud dia 1/2 – 13
    * Suffix U denotes undrilled version, not cULus Listed *

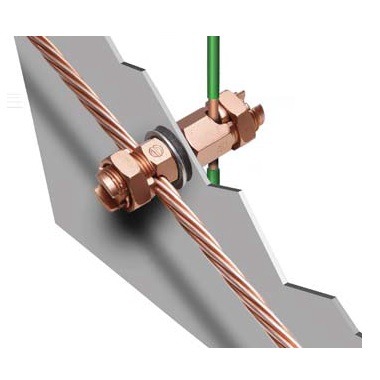

    handybug-app

  2. Features
    • Power or Grounding and Bonding Applications
    • Can be used to terminate wires to bus bars or steel
    • Can be used for splicing and tap connections
    • No special tooling required
    • UL Listed for the US and Canadian markets (cULus: UL467 & UL486A/B)
    • Rated for Direct Burial
    • Tin plated
    • Industry standard mounting hole configurations
