DL全铝鼻子铝线接头UL/CSA

DL铝鼻子铝线接头
通过UL/CSA认证，可接铜铝线

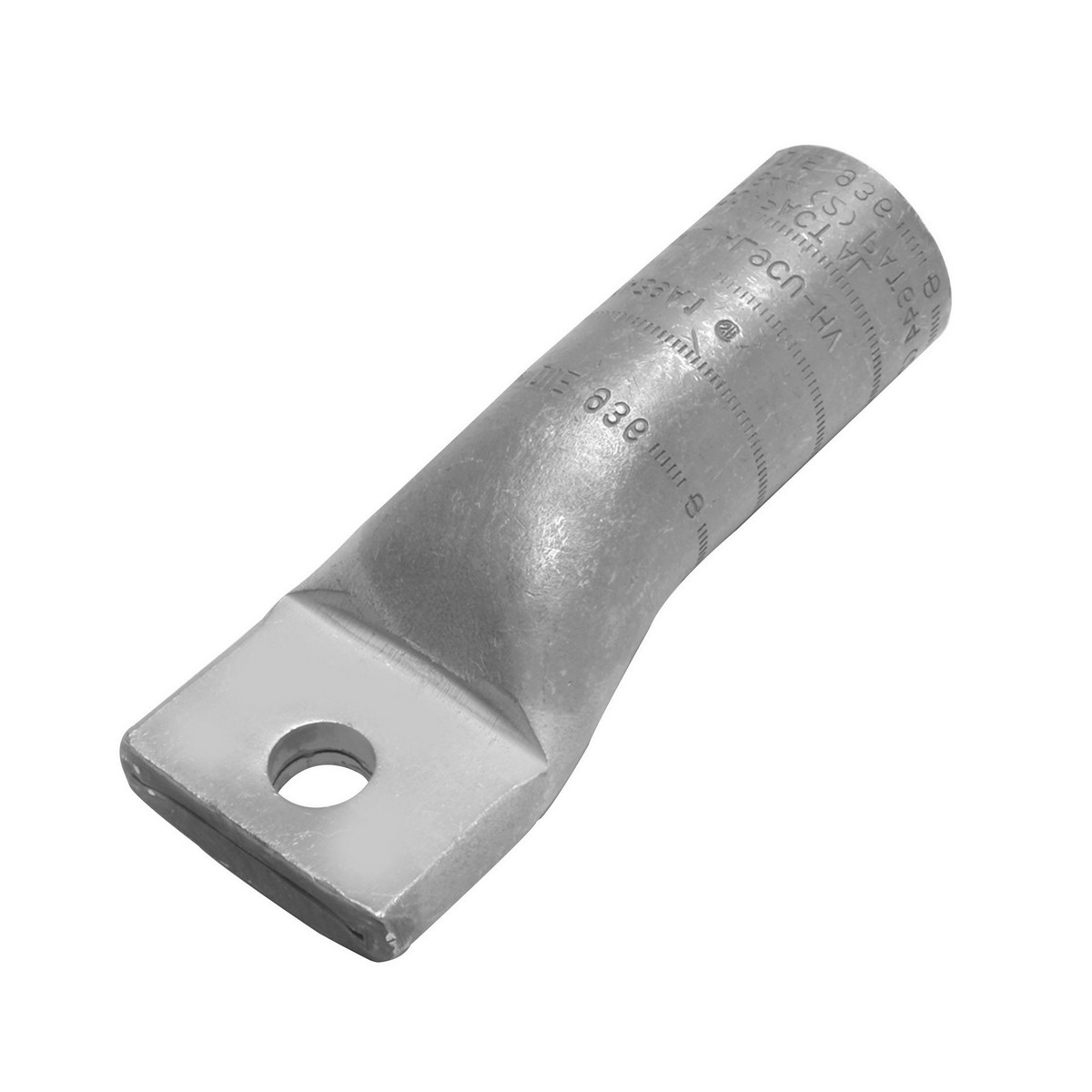

Type YA-A aluminum terminals with tin-plated are dual-rated and designed for use on both aluminum and copper conductors from #12 sol. through 2000 kcmil. terminals are designed for a permanent troublefree electrical termination.

Features & Benefits
• AL9CU indicates the terminal can accommodate aluminum and copper wire and is UL Listed 90ºC, up to 35kV
• AL7CU indicates the terminal can accommodate aluminum and copper wire and is UL Listed 75ºC, up to 35kV
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Factory pre-filled with PENETROX™ A13 oxide inhibitor
• Aluminum oxidation is not easily detected but causes resistance in a connection; it is imperative the proper preparation takes place prior to making an aluminumto-aluminum connection
