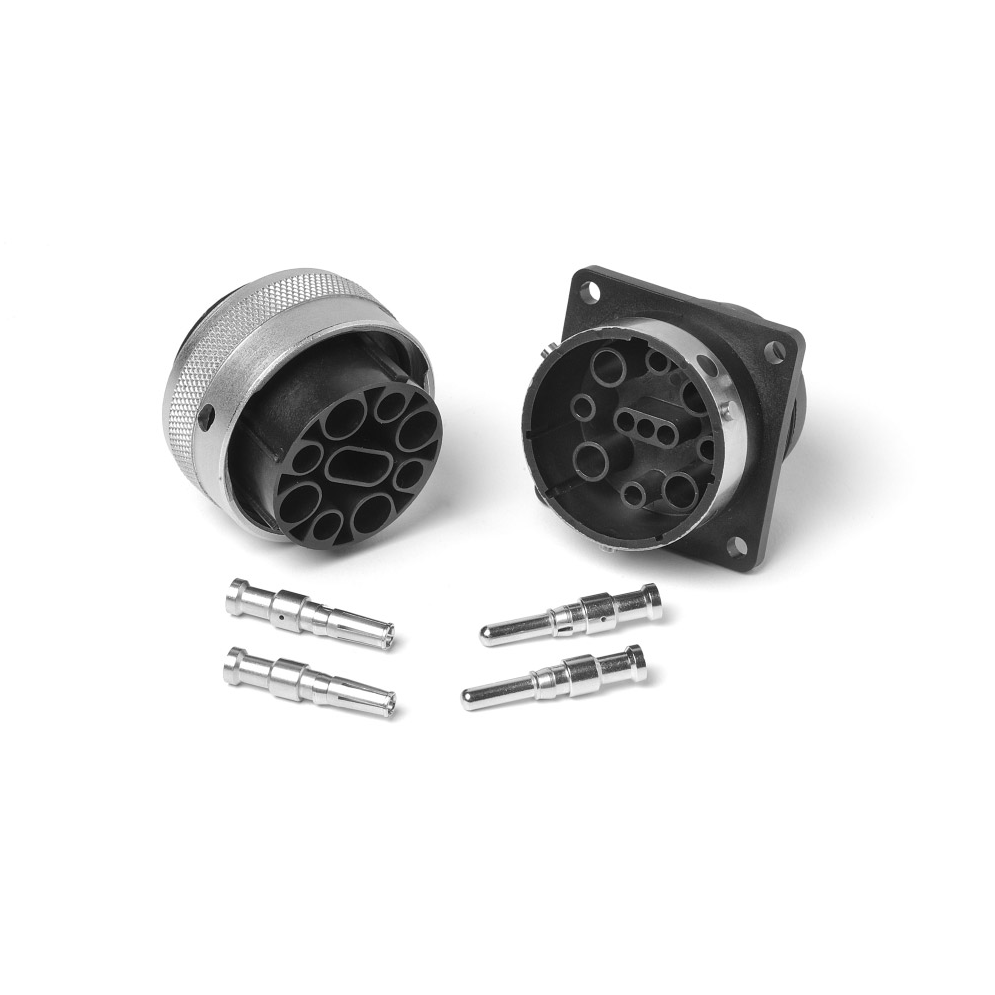

2411 mixed power+signal
4 power and 7 signal contacts
General Details
Description
24-11 is a standard shell size 24 connector with a modified insert arrangement to accept
4 power contacts #8 (3.6mm) and 7 #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #12 (2.4mm) for up to 26 Amp
• Per VDE 0110 (refer to technical drawings)
Machined Socket contacts #16
Heavy duty, used on all of circular and Rectangular connectors, Dia=1.6mm
Machined pin contacts #16
Heavy duty, used on all of circular and Rectangular connectors, Dia=1.6mm
