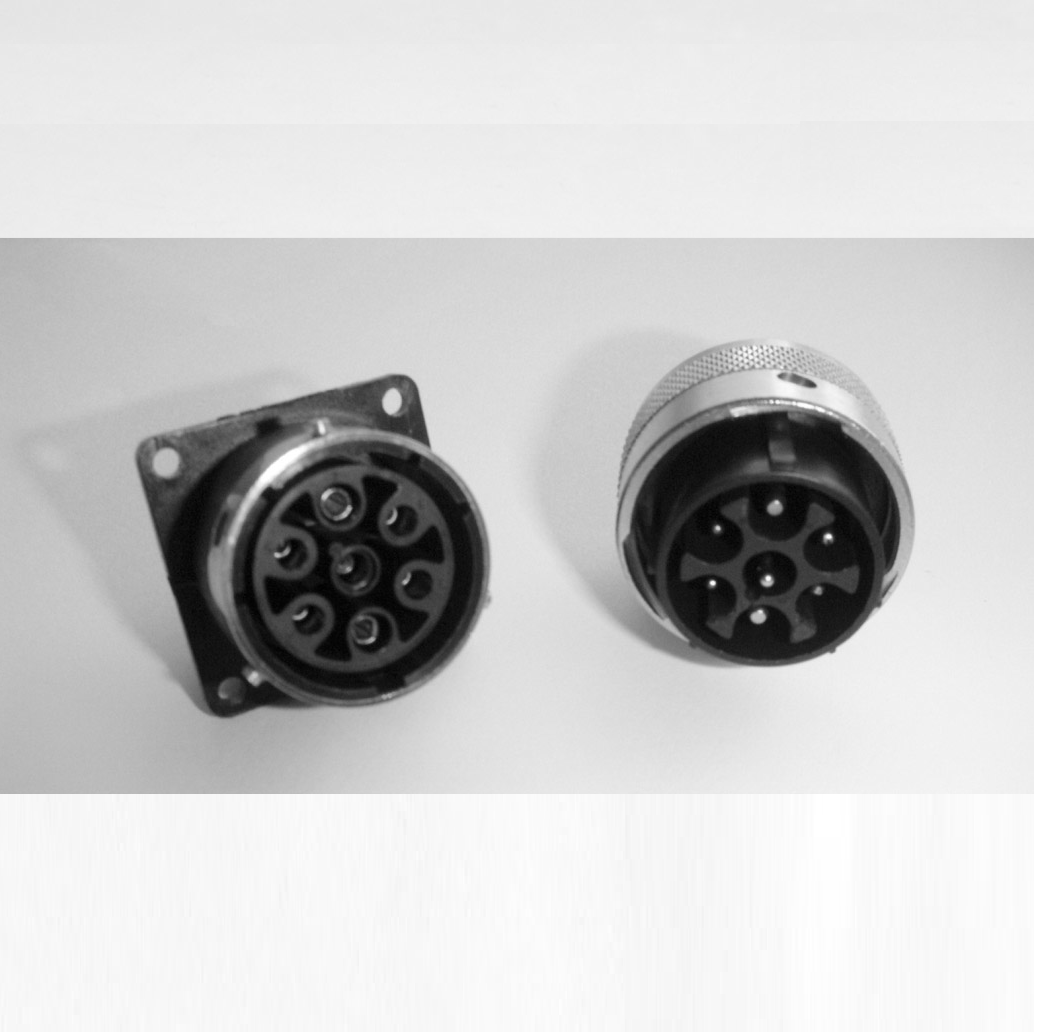

187 mixed power+signal
2 power and 5 signal contacts
General Details
Description
It is a standard shell size 18 connector with a modified insert arrangement to accept
2 power contacts #12 (2.4mm) and
5 signal contacts #16 (1.6mm)
Typical performance characteristics
• Power contacts #12 (2.4mm) for up to 26 Amp
• Per VDE 0110 Group C – 380V.
• 2 mating levels.
Machined Socket contacts #16
Heavy duty, used on all of circular and Rectangular connectors, Dia=1.6mm
Machined pin contacts #16
Heavy duty, used on all of circular and Rectangular connectors, Dia=1.6mm
