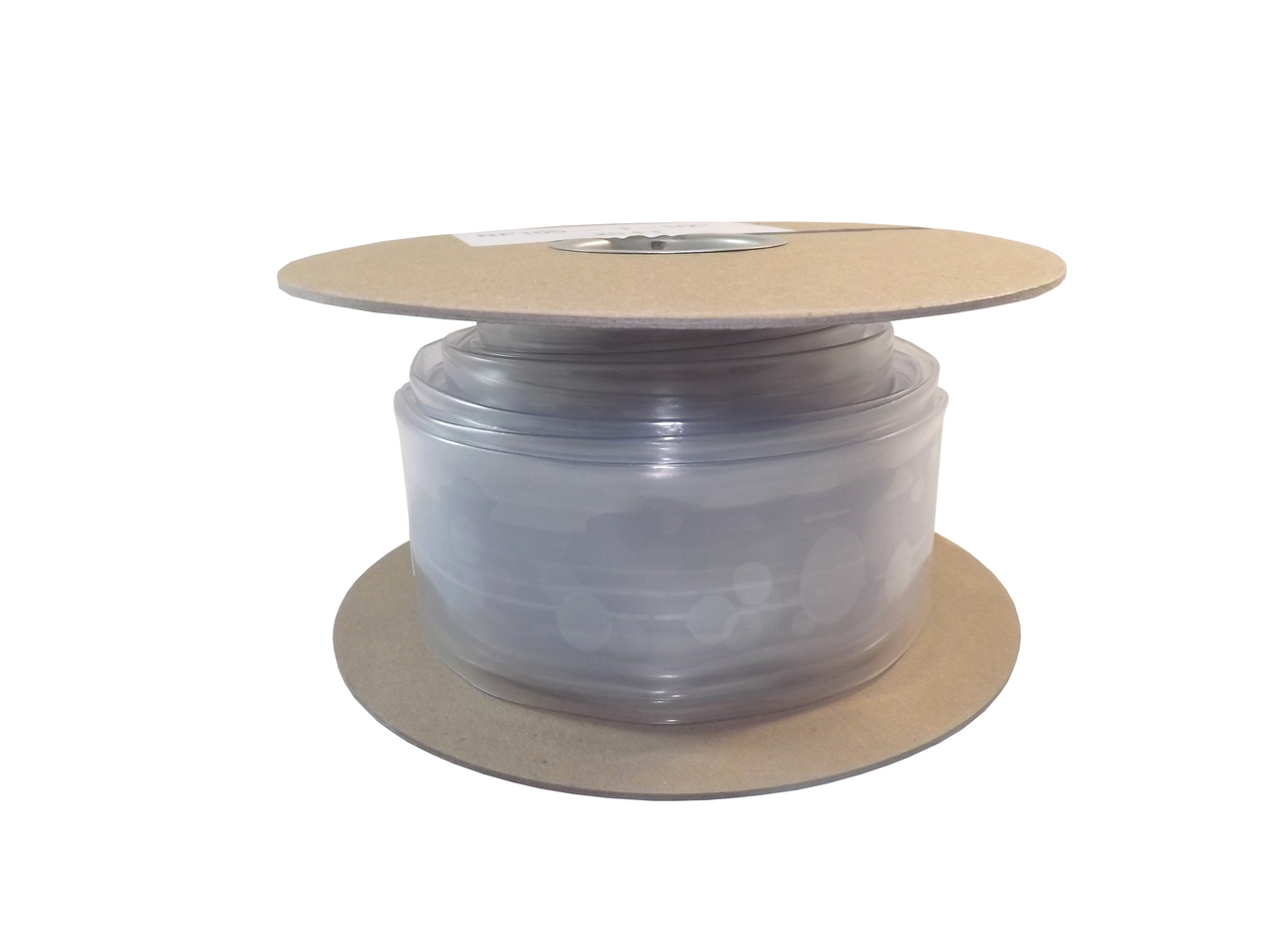

UL224离火自熄防火阻燃热缩套管VW-1
Fire Retardant Heat Shrink Tubing, 2:1 shrink ratio
VW-1阻燃热缩管
Fire Retardant Heat Shrink Tubing
通过UL224认证
Cross-linked polyolefin材质颜色 ：黑-红-白-绿-灰-棕-黄绿。热缩直径最大26mm或者101.6mm，电缆最大2000MCM
PVC材质颜色 ：黑-红-白-绿-蓝-黄-透明。热缩直径最大50.8mm，电缆最大1000MCM，meets MIL-M-23053/Z-206C
Heat-shrinkable tubing for general use; is environmentally neutral, flexible, not inflammable and offers fast heat shrinkage and stable performance. Main uses include insulation and
protection of electrical conductors, connectors and terminations; protection of metal tubes from corrosion; protection of antennae and various identification applications. Excellent flame retardant properties and a 2:1 shrink ratio, the VISI-SHRINK tubing enables inspectors to read die index embossments on installed connectors easily.
Features & Benefits
• Operating temperature: -55°C + 125°C
• Minimum shrinkage temperature: 70°C
• Temperature for complete shrinkage: 110°C
• UL Recognized to 600V
• UL 224, VW-1 Rated
HSC18FR HSC18FR250 HSC14FR HSC14FR250 HSC38FR HSC38FR250 HSC12FR HSC12FR250 HSC34FR HSC34FR250 HSC100FR HSC100FR100 HSC112FR HSC112FR100 HSC200FR HSC200FR100
