直埋厚壁热缩管UL486D/CSA
heavy wall heat shrink tubing, 3:1 shrink ratio, 1000V, direct burial.
黑色厚壁直埋热缩管
通过UL486D/CSA认证

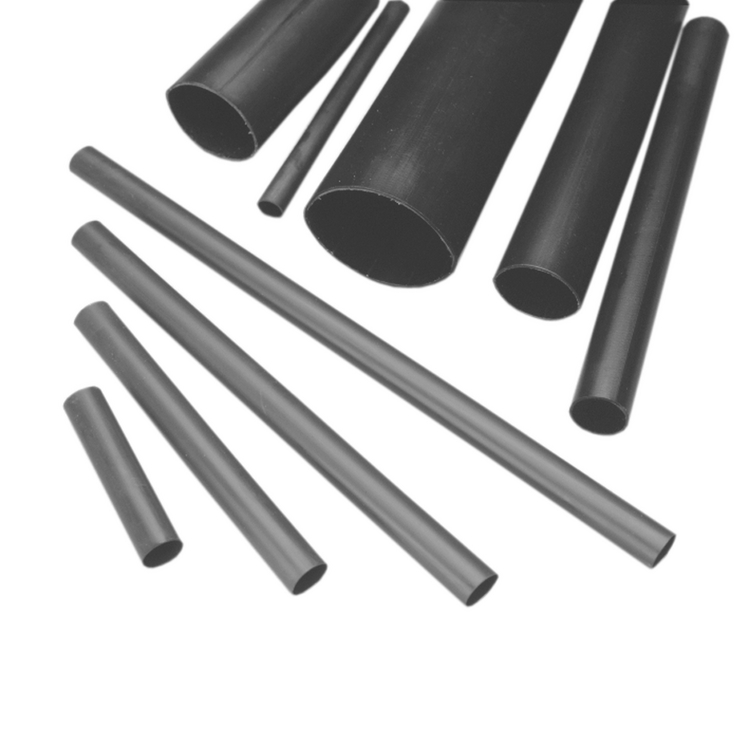

Type HS-H-PF is a heavy wall, flame retardant heat shrink tubing made of cross-linked polyolefin. The shrink ratio is 3:1, and the inside diameter is coated with an adhesive sealant to protect against moisture and corrosion. UL486D Listed for direct burial applications. Accommodates #14 AWG – 500 kcmil conductors. Operating temperatures from –55°C to 135°C with a shrink temperature of 120°C.
UL486D Listed for direct burial applications.
Meets SAE-AMS-DTL-23053/5
1000 V
HSB35H3PF25 3″
HSB35H6PF25 6″
HSB35H48PF5 4’
HSB34H6PF10 6″
HSB34H9PF10 9″
HSB34H48PF5 4’
HSB110H6PF5 6″
HSB110H9PF5 9″
HSB110H48PF5 4’
HSB150H9PF3 9″
HSB150H12PF3 12″
HSB150H48PF5 4’
HSB200H9PF2 9″
HSB200H12PF2 12″
HSB200H48PF2 4’
