KPA | Cable Lugs

SCRULUG™ copper tin-plated, For Copper Cable

General Details

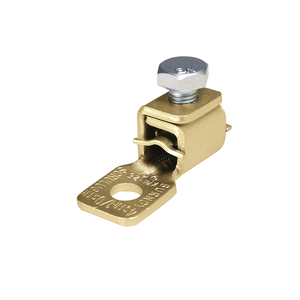

High copper alloy tin-plated terminal for joining a wide range of cable to equipment pads or terminal blocks. Especially good in light industrial applications. The tongue and body are a one-piece design. The pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable.

KPA8C 14 Sol. – 8 Str. 1 0.38 0.47 0.72 0.21 #10 0.97 0.22 0.06 25
KPA4C 14 Sol. – 4 Str. 1 0.50 0.59 0.94 0.27 1/4 1.22 0.30 0.06 35
KPA25 4 Str. – 1/0 Str. 2 0.75 0.81 1.25 0.33 5/16 1.82 0.41 0.10 180
KPA28 1/0 Str. – 4/0 Str. 2 0.97 1.12 1.66 0.39 3/8 2.40 0.53 0.13 250
KPA34 4/0 Str. – 500 kcmil 2 1.38 1.38 2.44 0.54 1/2 3.32 0.75 0.20 375



Certification

UL/CSA
