Raised Floor Grounding Clamps, two parallal cables to pedestal / Direct Burial
- General Details
- Features & Benefits
High copper alloy ground connector for raised floor computer grounding applications. These connectors can be installed on round and square pedestal applications and will accommodate one or two grounding wires to make an efficient grid. The underfloor signal reference grid provides the low impedance ground path that attenuates high frequency static and 60 Hz transient noise for
cleaner data output. UL467 Listed.In addition we offer the GP1726RT, which is especially designed for penetrating epoxy paint on pedestals. This patented connector offers a low impedance, time saving connection between conductors and the pedestal.

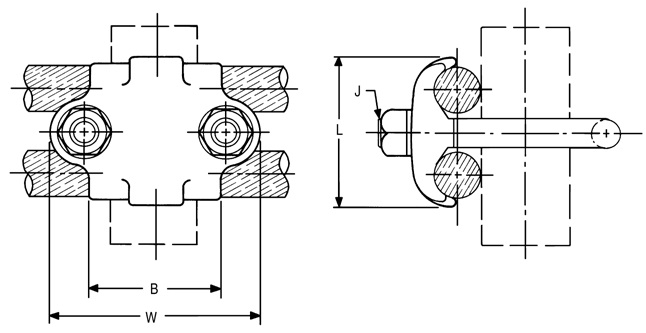

Catalog Number Number of Conductors Conductor Size Sol. & Str. Pedestal Size/ Type B J L W
GP654CG1 1 or 2 #8 Sol. – 4 Str. 3/4” – 1” Round 3/4” – 7/8” Square 1.50 3/8 1.31 2.38
GP64526G1 1 or 2 #4 Sol. – 2/0 Str. 1.50 3/8 1.69 2.38
GP64528G1 1 or 2 #4 Sol. – 4/0 Str. 1.50 3/8 1.69 2.38
GP1526G1 1 or 2 #4 Sol. – 2/0 Str. 1-1/4” Round 1.75 3/8 1.69 2.62
GP1726RT 1 or 2 #6 Sol. – 2/0 Str. 2” Round 2.12 3/8 1.50 3.22
GP1726G1 1 or 2 #6 Sol. – 2/0 Str. 2” Round 2.12 3/8 1.50 3.22
• Accepts 1 or 2 Ground Conductors
• Requires less connectors to install
signal reference grid
• Made of copper alloy
• DURIUM™ U-Bolts, nuts and lockwashers
• Provides a low impedance ground path for maximum performance
• Grounds all pedestals (round or square)
• Will handle from 3⁄4″ to 1″ round or square
• Ease of installation.
• Serves 3 needs
1. Signal Reference Grid
2. Static Ground
3. Fault Current Ground
• Connectors solves all possible grounding problems found in computer applications today
