CF23 | FPC/FFC连接器

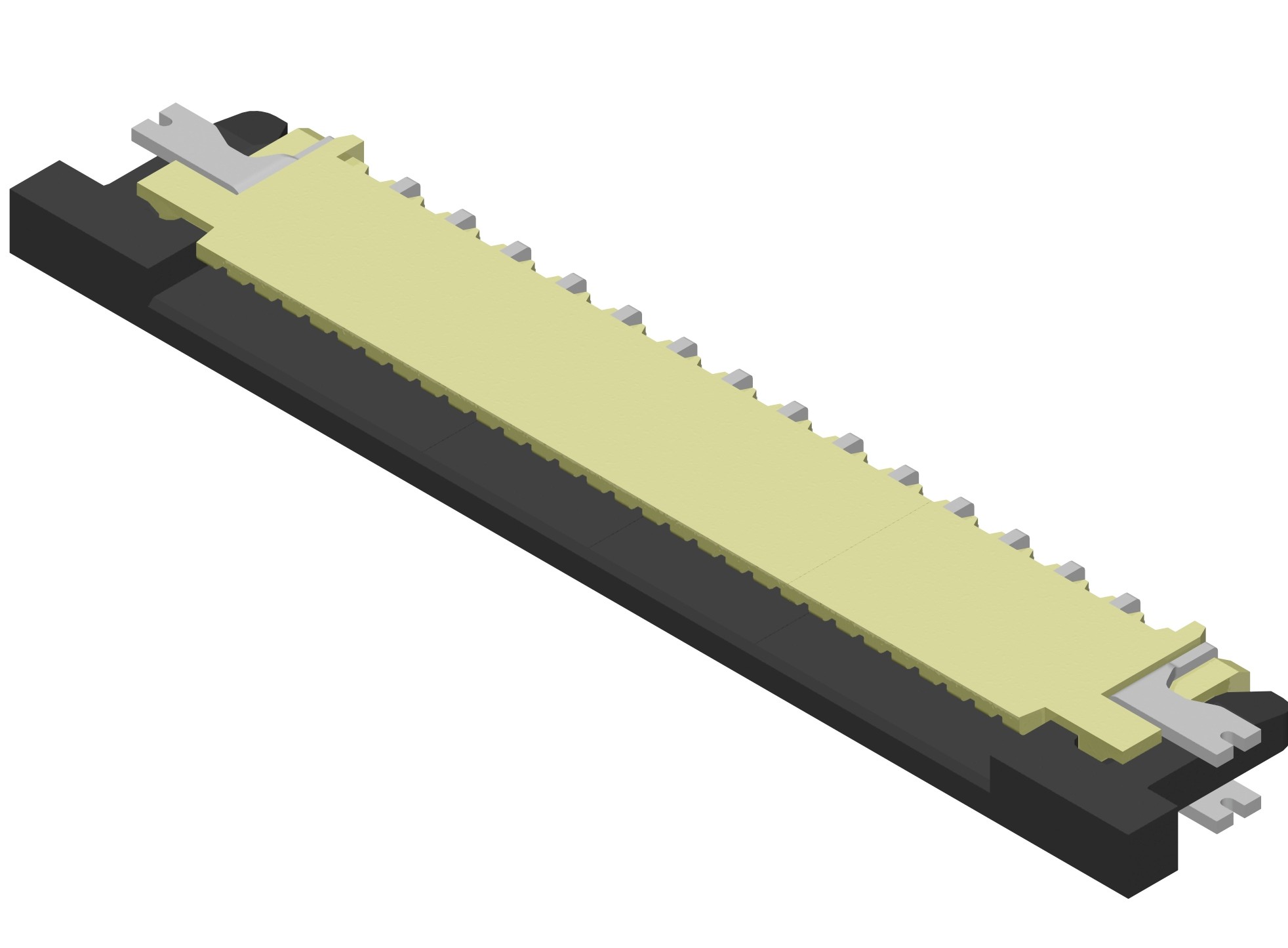

1.00mm(.033") ZIF Right Angle SMT Upside FFC/FPC Connectors
General Details
1.00mm(.033″) ZIF Right Angle SMT Downside FFC/FPC Connectors
◎ Rated Current and Voltage : 0.4A , 50V AC/DC(r.m.s)
◎ Dielectric Withstanding Voltage : 250V AC for one minute
◎ Contact Resistance : ＜30mΩ
◎ Insulation Resistance : ＞500MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant
| CIRCUITS | 3~19 CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1=Tin plated over Nickel 2=Gold flash plated over Nickel |
||
