MAP10分离式油压冲孔机

分离式液压冲孔机,不锈钢板1.6mm铁板3.2直径115.5

Category:
General Details

分体式手动液压冲孔机

MAP10系列:用于不锈钢板最大厚度1.6mm;铁板最大厚度3.2mm;
出力12吨,行程25mm,油量40cc,重量20kg;包括冲孔模具10个,直径22 / 27.6 / 34.1 / 42.7 / 48.7 / 60.5 / 76.1 / 88.9 / 102.8 / 115.5mm;

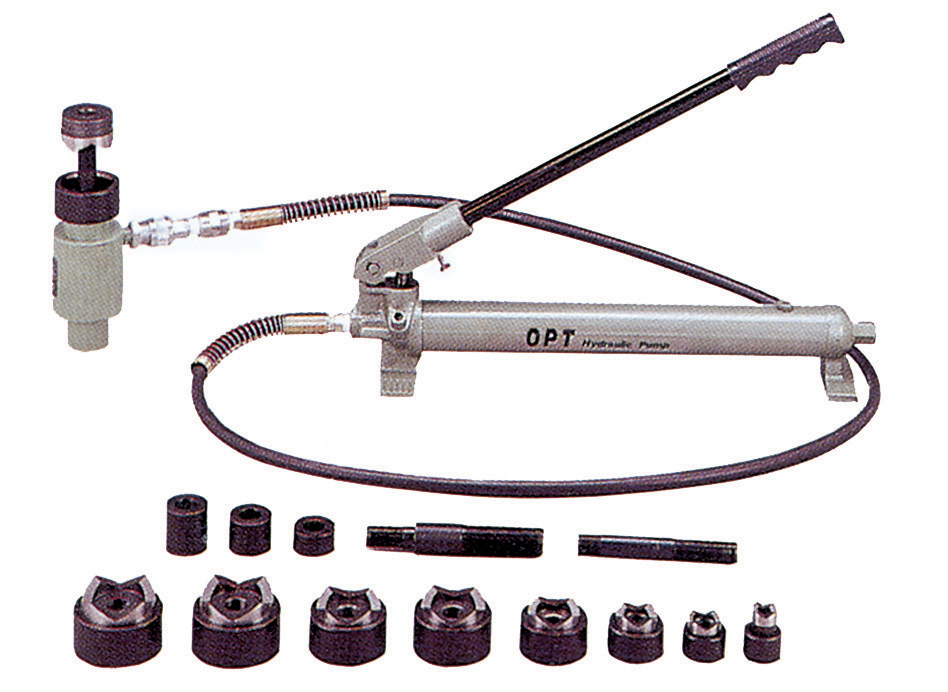

MAP-10 (Remote Type)
Punch head plus accessories / 20kgs excludes pump
12 tons output / 25mm ram stroke / 40 c.c. oil capacity
Remote type needs to work with pump
Punching range
For stainless steel plate
Max. thickness 1.6mm (Gauge 16)
For galvannealed steel plate
Max. thickness 3.2mm (Gauge 11)
Accessories
Punch dies x 10 sizes
Ø 21.8 (1/2”) / Ø 27.6 (3/4”) / Ø 34.1 (1”) mm
Ø 42.7 (1-1/4”) / Ø 48.7 (1-1/2”) / Ø 60.5 (2”) mm
Ø 76.1 (2-1/2”) / Ø 88.9 (3”) / Ø 102.8 (3-1/2”) / Ø 115.5 (4”) mm
Draw x 3 sizes: 3/8” & 3/4” & 1”
Spacer x 3 sizes: AD20 & AD34 & AD44
Standard hand pump H-B with 1.8M Hose

Features
