Anti-Rotate lugs#KA-UAR
UNIVERSAL ANTI-ROTATE TERMINALS (One Conductor) For Aluminum and Copper Conductors
Category: Dual-Rated Lugs
- General Details
- Certification
- Related Products
General Details

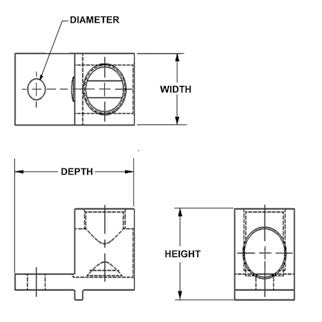

Anti-Rotational Universal Terminal
These dual-rated one-conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance. These lugs also contain a bottom anti-turn tab.
cable range from 14AWG to 600KCMIL
KA4UAR 14 – 3 1/4 1.16 0.50 0.56 .06 .12 45
KA25UAR 14 – 1/0 1/4 1.47 0.63 0.78 .06 .13 50
KA26UAR 14 – 2/0 1/4 1.47 0.63 0.78 .13 .13 120
KA30UAR 6 – 300 1/4 1.56 0.94 1.13 .09 .19 275
KA31UAR 6 – 350 5/16 1.19 1.00 1.13 .13 .19 275
KA36UAR 4 – 600 3/8 2.75 1.38 1.57 .19 .19 375
CSA and UL listed.
Certification
UL/CSA/AL9CU/AL7CU
