G Series Full metal

产品介绍

Full metal connector
The G series is based on MIL-C-26482 and is designed with electrical, mechanical specifications, mounting dimensions, etc.

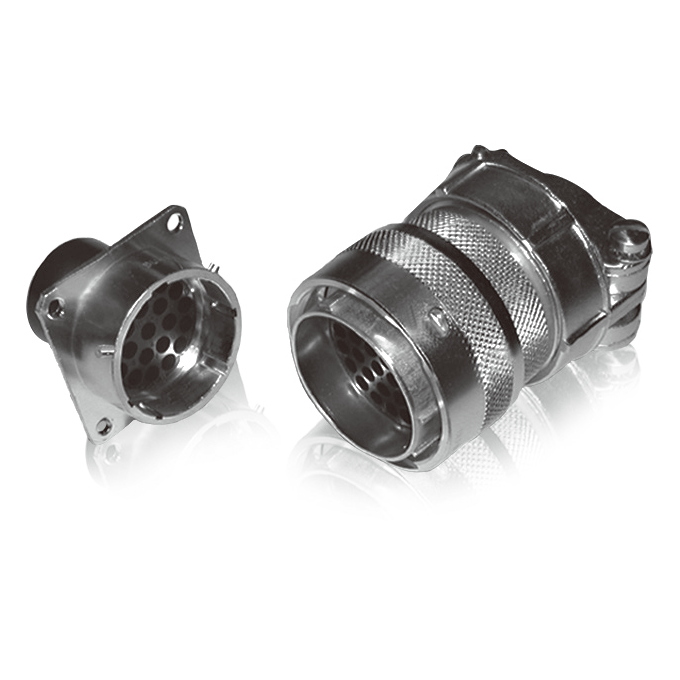

G6A/G2B is his robust general industrial connector made of aluminum for both body and coupling ring, with 8 different shells and 8 different pin arrangements.by combining the polarization key and keyway, 5 types of combinations of the same size are possible. applicable contacts #16.

G2B104PNE G2B104SNE 10 15.0 14.2
G2B1288PNE G2B1288SNE 12 19.1 17.4 20.6 26.6
G2B1492PNE G2B1492SNE 14 22.2 20.6 23.0 29.0
G2B1619PNE G2B1619SNE 16 25.4 23.8 24.6 31.3
G2B1822PNE G2B1822SNE 18 28.6 26.9 27.0 33.7
G2B2030PNE G2B2030SNE 20 31.8 30.1
G2B2238PNE G2B2238SNE 22 34.9 33.3 31.8 40.1
G2B2448PNE G2B2448SNE 24 38.1 36.5
G6A104PNE-JG G6A104SNE-JG 10 21.4 49.0 22.2 7.5
G6A1288PNE-JG G6A1288SNE-JG 12 24.7 51.0 27.0 10.7
G6A1492PNE-JG G6A1492SNE-JG 14 27.7
G6A1619PNE-JG G6A1619SNE-JG 16 31.1 31.8 15.4
G6A1822PNE-JG G6A1822SNE-JG 18 34.1
G6A2030PNE-JG G6A2030SNE-JG 20 37.5 57.0
G6A2238PNE-JG G6A2238SNE-JG 22 40.4
G6A2448PNE-JG G6A2448SNE-JG 24 44.0
