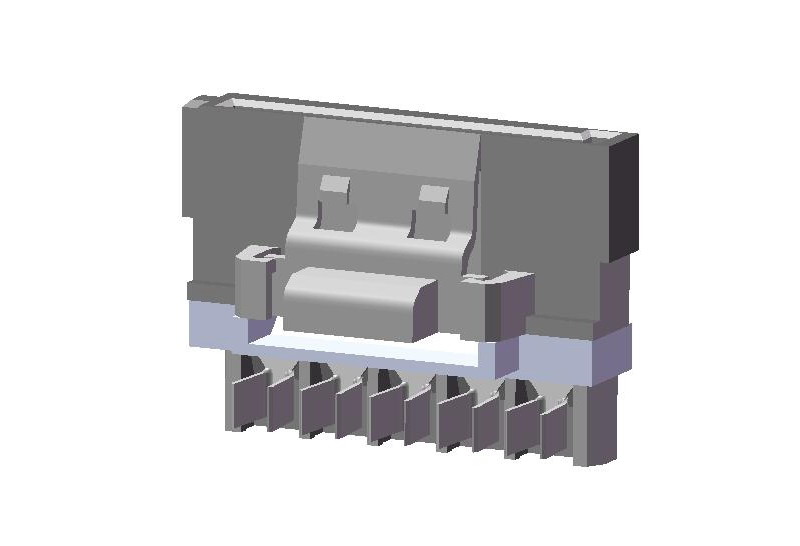

Plastic Latch Series 1.27mm(.050) Serial ATA Power Receptacle Connector Molding Type
Category: 线对板连接器
◎ Rated Current and Voltage : 1.5A 15V DC (r.m.s)
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : 30mΩ
◎ Insulation Resistance : 1000MΩ
◎ Operating Temperature : -40℃~105℃
◎ RoHS Compliant
◎ Halogen-Free
CIRCUITS | AWG#18-AWG#22
AWG |
||
---|---|---|---|
Plating Code | A = Selective 1.2u Gold Flash Over 50u Nickel;
B = Selective 15u Gold Over 50u Nickel; C = Selective 30u Gold Over 50u Nickel |
