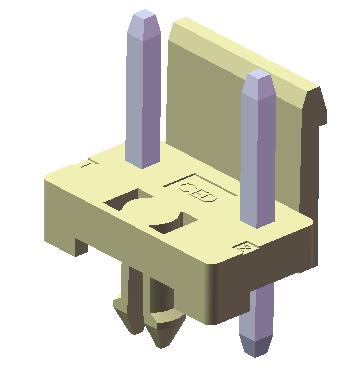

7.92mm(.312) Wire to Board Straight Type Headers

◎ Rated Current and Voltage : 7A , 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 1500V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Operating Temperature : -25℃~105℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen Free

CIRCUITS 2

CIRCUTS

Plating Code 1= Matte Tin Over Nickel Plated
