CI17

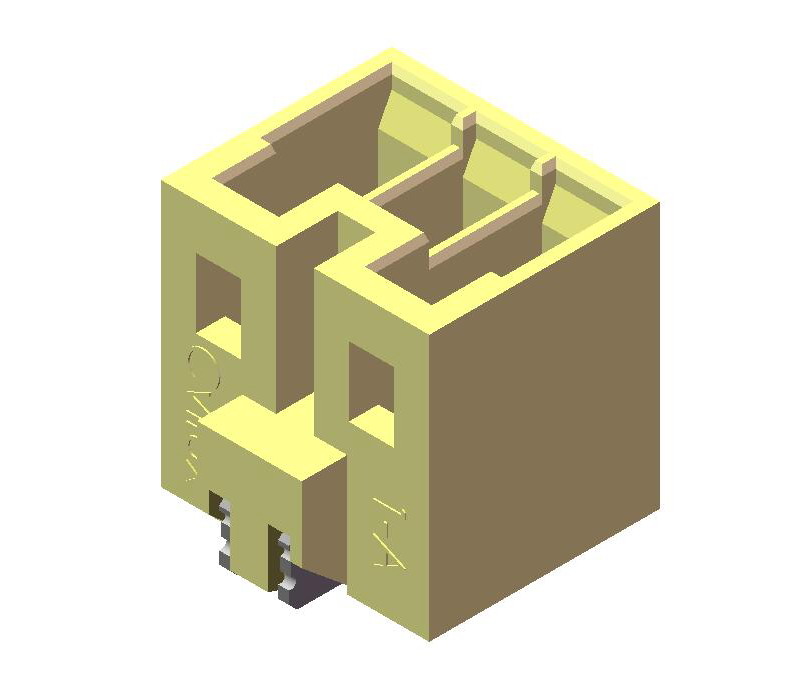

1.50mm(.059) Wire to Board Straight SMT Headers
◎ Current rating : 1.0A 250V AC /DC
◎ Dielectric Withstanding Voltage : 1500 V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -25℃~130℃
◎ RoHS Compliant
| CIRCUITS | 03CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Plated over Nicke | ||
