CF42 | FPC/FFC连接器

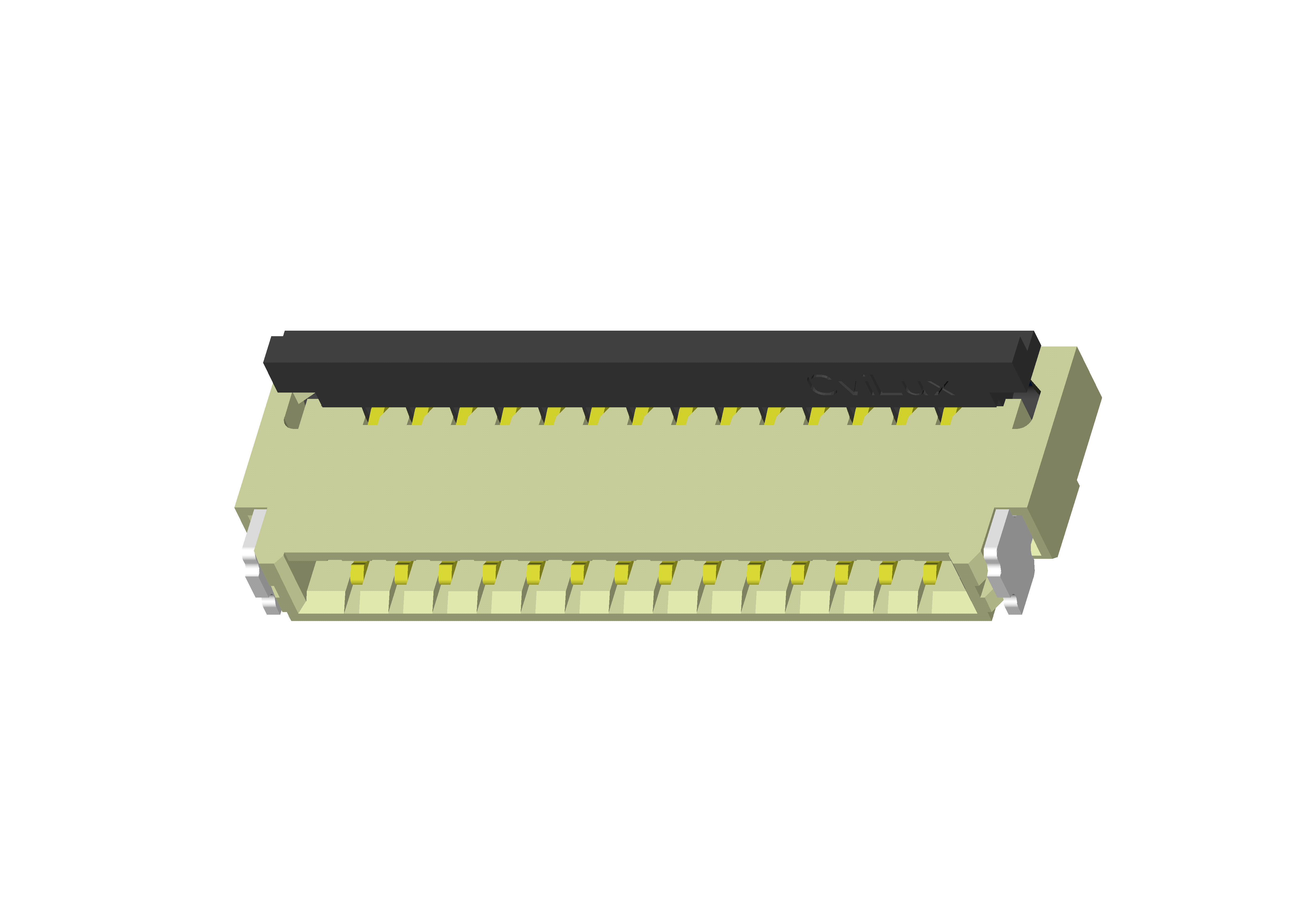

0.50mm(.020”)H=0.96 SMT ZIF ONE-TOUCH FFC/FPC Connectors /Back Flip (Halogen Free)
◎ Rated Current and Voltage : 0.5Amp/50V AC/DC max.
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜60mΩ
◎ Insulation Resistance : ＞500MΩ
◎ Operating Temperature : -40℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen Free
| CIRCUITS | 04 to 29(4,6,8,9,10,12,15,18,20,26) CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Plated Over Nickel F= Selective Gold flash over Nickel |
||
