BGBS Aluminum Lay-in Lugs

Lay-in Lugs for copper or alu.

产品介绍

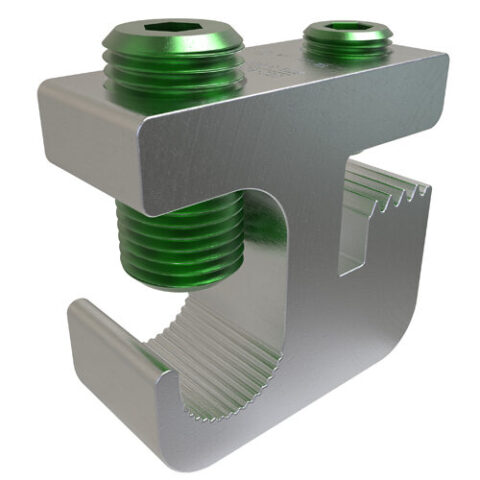

BURNDY® announces a new series of lay-in lugs – BGBS4 and BGBS5. Made of high strength aluminum alloy, these items can be used with copper or aluminum conductors. The connectors are for use with solar modules with a maximum thickness of 1/4 inches. Both are electro-tin plated and provided with stainless steel hardware.

The serrations establish better contact and cut through oxidation, ensuring low contact resistance and high conductivity. The anodization on aluminum rails is nonconductive and electrical current cannot pass through this layer; the cup point screw penetrates this layer allowing current to flow into the aluminum connector and consequently current flows to the conductor.

These connectors are UL467 and UL2703 Listed for use with copper cables of size 14 AWG – 6 AWG and aluminum cables 12 AWG – 6 AWG; stranded or solid. The connectors are also available in bulk.

BGBS4 14 – 6 AWG STR./SOL. 12 – 6 AWG STR./SOL. 1 1.38 0.50 0.94
BGBS4BULK 6-14: 35 in-lbs
BGBS5 2 1.40 0.50 1.44
BGBS5BULK 6-12: 50 in-lbs

Certification

UL467 Listed for Grounding and Bonding
UL2703 Listed
