YDSR-RL

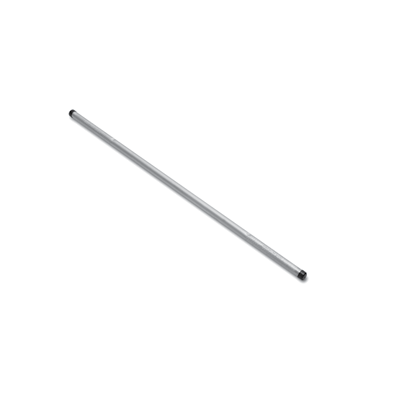

UNISPLICE™ Replacement Splice UNISPLICE™ ACCOMMODATES: AAC (STR, COMPACT), ACSR, and AAAC MATERIAL: ALUMINUM TENSION RATING: ANSI C119.4 CLASS 1A (FULL TENSION)
Single sleeve aluminum UNISPLICE™ is designed to facilitate the permanent replacement of existing line splices, including the automatic type. Utilizing all the benefits of the standard UNISPLICE™, the extra long Replacement UNISPLICE™ fills the gap
of a cutout splice and eliminates the need to find like conductor. It also reduces installation time of the current standard methods by half, reducing the total number of splices from two to one. All splices are prefilled with PENETROX™ joint compound,
stripsealed and capped to limit oxide growth and to increase the life of the connection.
U Die with adapter PT-6515.
U Die with adapter PUADP-1.
* Multiple crimp die set; makes more than one
crimp per tool compression. Figure indicates
number of compressions.
** MD6 NON-BOW Dies produce straight
sleeves without rotating tool.
† Overlap Crimps
For faster installations use BURNDY® PATRIOT®
family of battery tools.
