STD
电池保护片

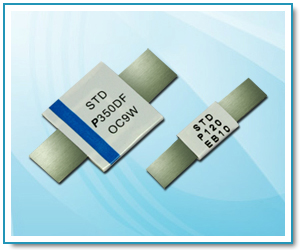

These axial leaded strap devices provide reliable, non-cycling protection for rechargeable batteries. The STDs’ nickel leads have narrow, low-profile profiles that are ideal for direct installation onto battery cells.
| Part Number | I hold (A) |
I trip (A) |
V max (Vdc) |
I max (A) |
Pd max. (W) |
Maximum Time To Trip |
Resistance | Agency Approval |
||||
| Current (A) |
Time (Sec.) |
R min (Ω) |
R Type (Ω) |
R 1max (Ω) |
 |
 |
||||||
| STD120F | 1.2 | 2.7 | 15 | 100 | 1.2 | 6 | 5 | 0.085 | 0.16 | 0.22 | √ | √ |
| STD120SF | 1.2 | 2.7 | 15 | 100 | 1.2 | 6 | 5 | 0.085 | 0.16 | 0.22 | √ | √ |
| STD175F | 1.75 | 3.8 | 15 | 100 | 1.5 | 8.75 | 5 | 0.05 | 0.09 | 0.12 | √ | √ |
| STD175SF | 1.75 | 3.8 | 15 | 100 | 1.5 | 8.75 | 5 | 0.05 | 0.09 | 0.12 | √ | √ |
| STD200F | 2 | 4.4 | 30 | 100 | 1.9 | 10 | 4 | 0.03 | 0.06 | 0.1 | √ | √ |
| STD350F | 3.5 | 6.3 | 30 | 100 | 2.5 | 20 | 3 | 0.017 | 0.031 | 0.05 | √ | √ |
| STD420F | 4.2 | 7.6 | 30 | 100 | 2.9 | 20 | 6 | 0.012 | 0.024 | 0.04 | √ | √ |
