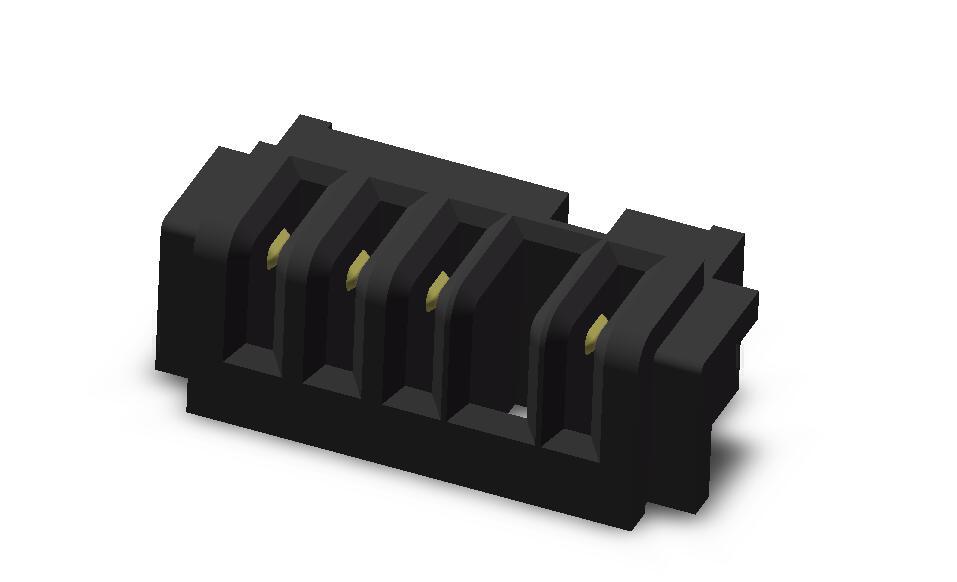

2.50mm Right Angle Battery Female Connecrots

Category:

◎ Rated current and voltage : 7A max,125V AC (r.m.s)
◎ Dielectric Withstanding Voltage : 1000V AC for one minute
◎ Contact Resistance : <40mΩ
◎ Insulation Resistance : >100MΩ
◎ Operating Temperature : -40℃~ 105℃

CIRCUITS 03 to 06 CIRCUTS
Plating Code 9= 5u” Min. Gold Plated over 80u” Nickel
