CP20

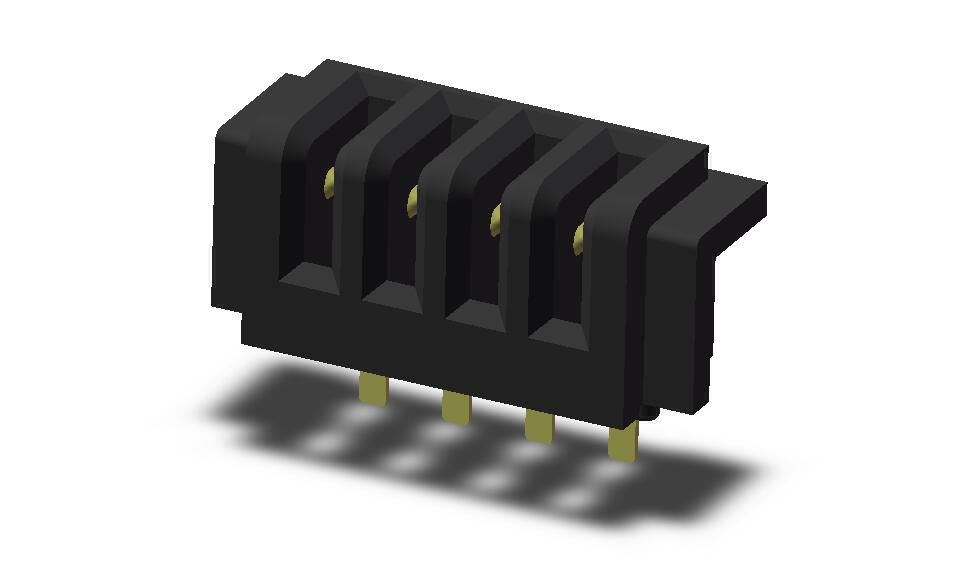

2.50mm Straight Battery Female Connectors
◎ Rated current and voltage : 7A max,125V AC (r.m.s)
◎ Dielectric Withstanding Voltage : 1000V AC for one minute
◎ Contact Resistance : ＜40mΩ
◎ Insulation Resistance : ＞100MΩ
◎ Operating Temperature : -40℃~ 105℃
| CIRCUITS | 4~7 CIRCUTS | ||
|---|---|---|---|
| Plating Code | 9= 5u” Min. Gold Plated over 80u” Nickel | ||
