CJCL RJ45

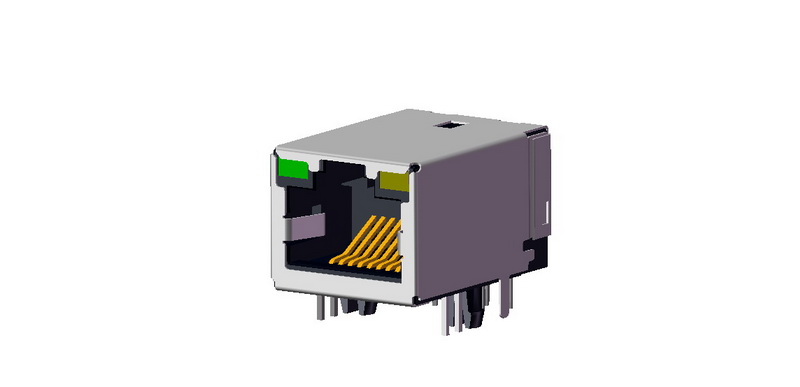

SERIES 10/100 Base-Transformer RJ45 Connector
◎ Rated Current and Voltage : 1.5A 150V AC (r.m.s)
◎ Dielectric Withstanding Voltage : 1000V AC for one minute
◎ Contact Resistance : ＜20mΩ(Initial) ,＜30mΩ(Final)
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -40℃~+80℃
◎ RoHS Compliant
| CIRCUITS | 08 CIRCUTS | ||
|---|---|---|---|
| Plating Code | A = Selective 1.2μ” Gold Flash over 50μ” Nickel | ||
