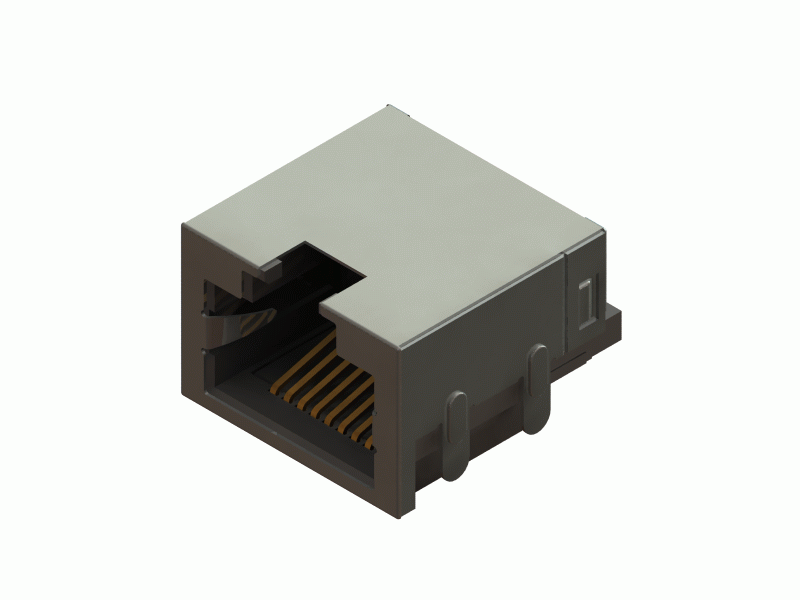

CJB1
Board Mount Telephone Jack
◎ Rated Current and Voltage : 1.5A, 125V AC (r.m.s)
◎ Dielectric Withstanding Voltage : 1000 V AC for one minute
◎ Contact Resistance : ＜40mΩ
◎ Insulation Resistance : ＞500MΩ
◎ Operating Temperature : -40℃~105℃
◎ RoHS Compliant
◎ Halogen-Free
| CIRCUITS | 8P8C CIRCUTS | ||
|---|---|---|---|
| Plating Code | I= Selective Gold flash plated over 1.27um(50u”) Nickel | ||
