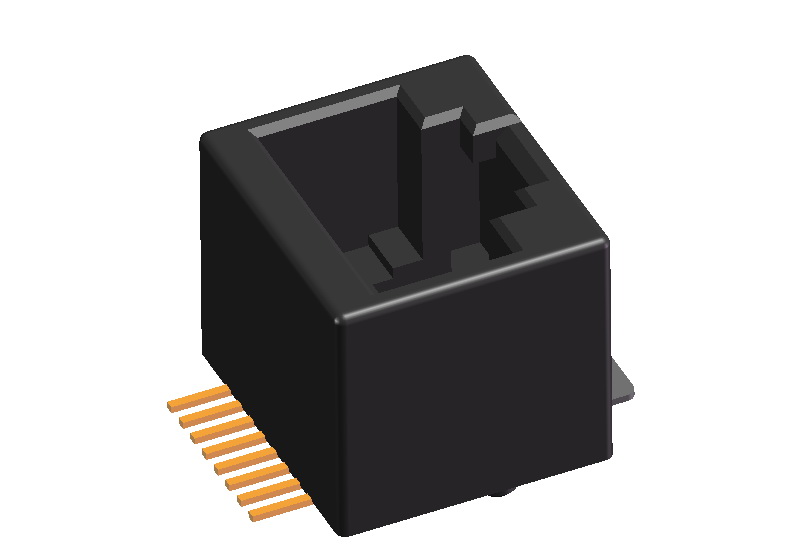

CJ33
Board Mount Telephone Jack
◎ Current rating : 1.5A, 150V AC (r.m.s)
◎ Dielectric Withstanding Voltage : 1000 V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞500MΩ
◎ Operating Temperature : -40℃~85℃
◎ RoHS Compliant
| CIRCUITS | 8P8C CIRCUTS | ||
|---|---|---|---|
| Plating Code | A = Selective 1.2μ” Gold Flash over 50μ” Nickel | ||
