CIL1

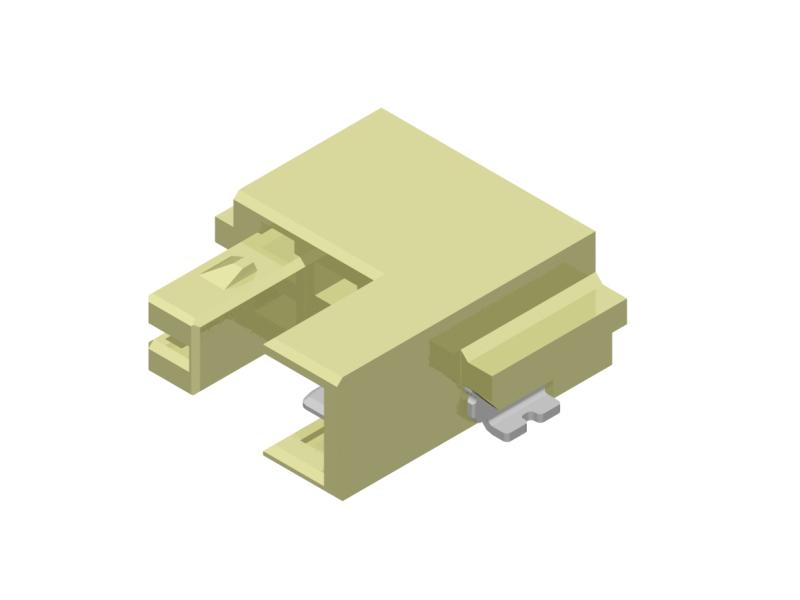

3.5mm Board to Board Connectors
◎ Current rating : 3.0A 250V AC /DC
◎ Dielectric Withstanding Voltage : 1500 V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant
◎ Halogen-Free
| CIRCUITS | 02 CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Plated over Nickel | ||
