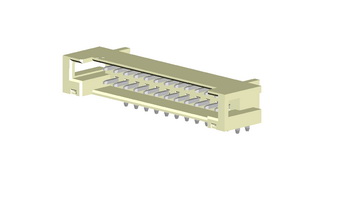

2.00mm(.079)Dual Row Right Angle Type Pin Header

◎ Rated Current and Voltage : 2A 200V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Service Temperature : -55℃ ~ 105℃
Storage Temperature : -25℃ ~ 85℃
◎ RoHS Compliant

CIRCUITS 24

CIRCUTS

Plating Code 1= Tin Over Nickel Plated
