CID5

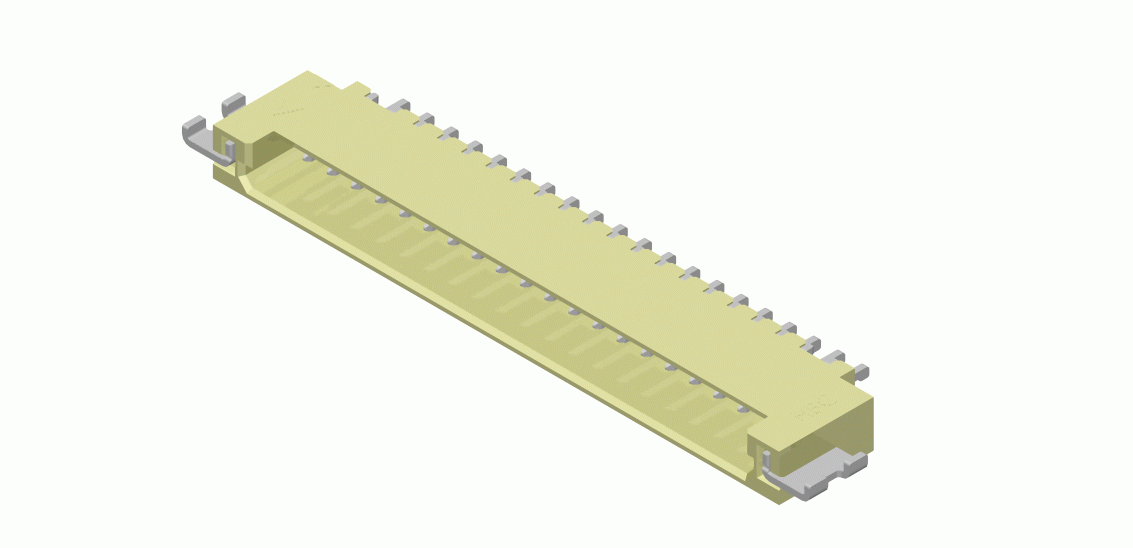

1.25mm(.049")Wire to Board Connectors SMT Headers
◎ Rated Current and Voltage : 1.0A 150V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜30mΩ
◎ Insulation Resistance : ＞500MΩ
◎ Operating Temperature : -35℃ ~ +85℃
◎ Storage Temperature Range: -10℃ ~ +60℃
| CIRCUITS |
CIRCUTS |
||
|---|---|---|---|
| Plating Code | 1= Tin Over Nickel Plated 2= Gold Flash Plated over 50μ” Nickel |
||
