CI94

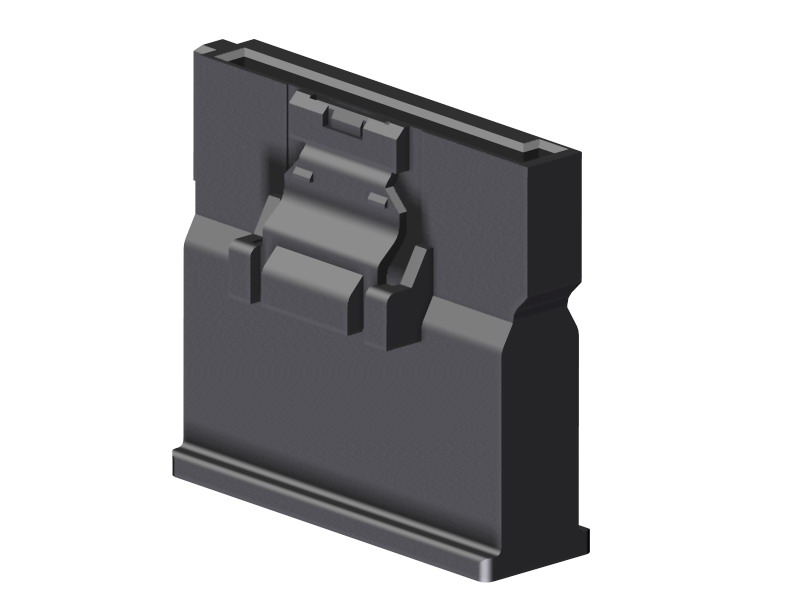

Latch Series1.27mm(.050) Serial ATA Power Receptacle Connector
◎ Rated Current and Voltage : 1.5A 15V DC (r.m.s)
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : 30mΩ
◎ Insulation Resistance : 1000MΩ
◎ Operating Temperature : -40℃~105℃
◎ RoHS Compliant
◎ Halogen-Free
| CIRCUITS | #18~#22
AWG |
||
|---|---|---|---|
| Plating Code | A = Selective 1.2u” Gold Flash Over 50u” Nickel
B = Selective 15u” Gold Over 50u” Nickel C = Selective 30u” Gold Over 50u” Nickel |
||
