CI88

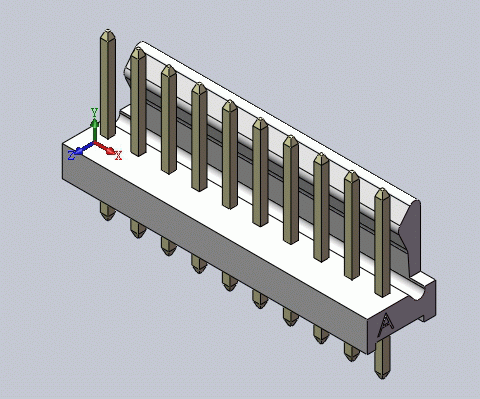

2.54mm(.100")Pin Headers
◎ Rated current and voltage : 4A 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 750V AC for one minute
◎ Insulation Resistance : ＞5000MΩ
◎ Operating Temperature : -55℃ ~ 105℃
◎ RoHS Compliant
| CIRCUITS | 02~28
CIRCUTS |
||
|---|---|---|---|
| Plating Code | 1= Matte Tin over Nickel Plated 2= Gold flash over Nickel |
||
