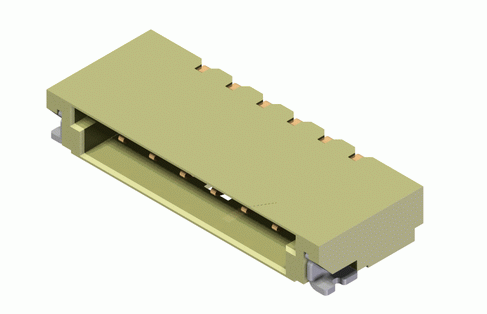

1.25mm(.049")Wire to Board Connectors SMT Headers

◎ Rated Current and Voltage : 1A 200V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 300V AC for one minute
◎ Contact Resistance : <55mΩ
◎ Insulation Resistance : >500MΩ
◎ Ambient Temperature : -40℃~ 85℃
◎ RoHS Compliant

CIRCUITS 6

CIRCUTS

Plating Code 1= Matte Tin Over Nickel Plated
