CI42

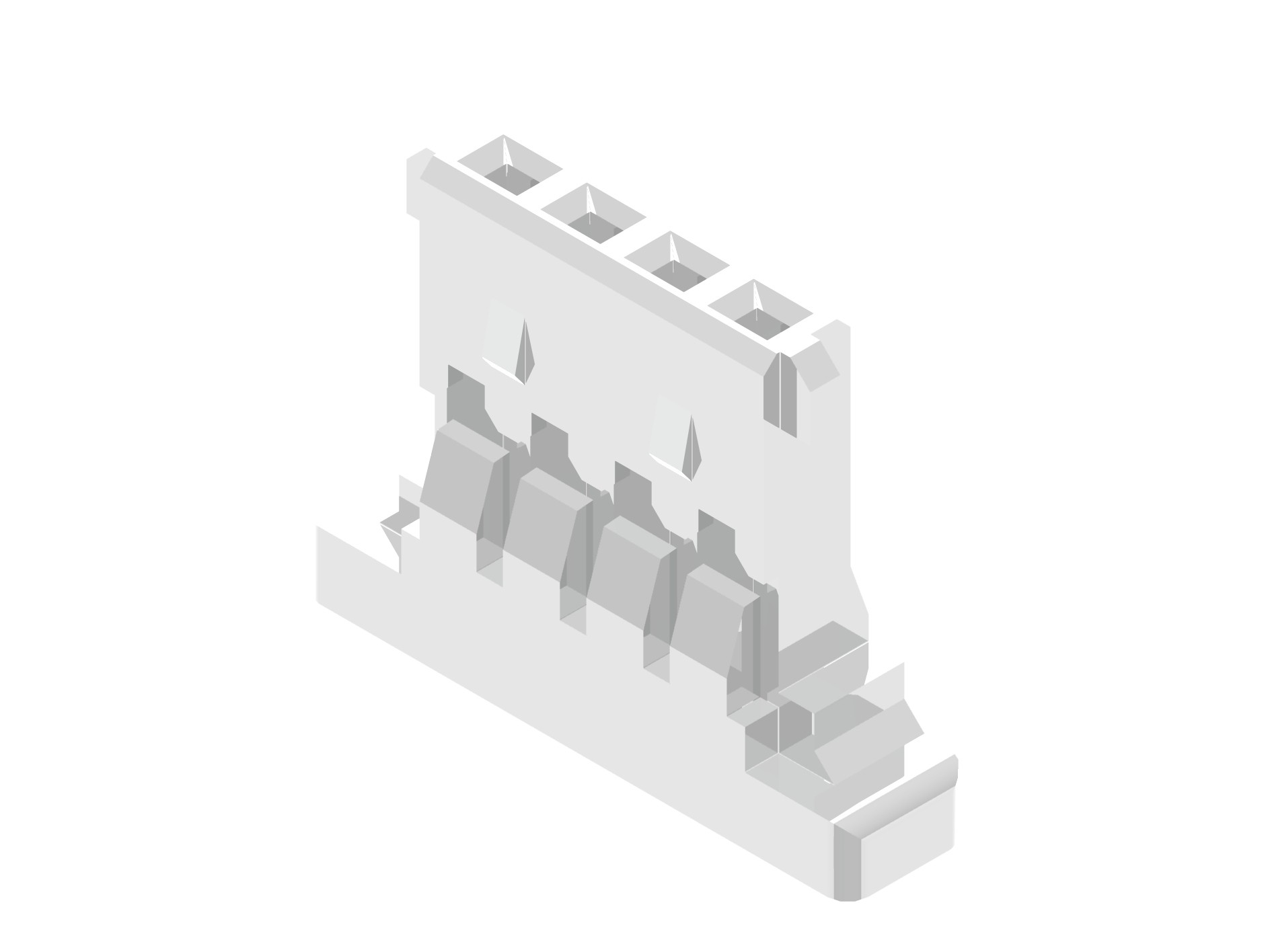

1.25mm (.049) Single Row Wire to Board Crimp Housing
◎ Rated Current and Voltage : 1A 200V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞100MΩ
◎ Ambient Temperature : -55℃~ 85℃
◎ RoHS Compliant
| CIRCUITS | 2~30
CIRCUTS |
||
|---|---|---|---|
| Plating Code | |||
