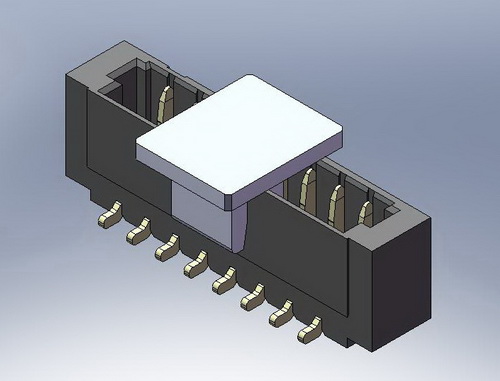

0.80mm(.031") Wire to Board Connector

◎ Rated Current and Voltage : 0.5A, 30V DC (r.m.s)(AWG#32)
◎ Dielectric Withstanding Voltage : 500 V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >100MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant

CIRCUITS 02 to 15

CIRCUTS

Plating Code 1=Tin plated over Nickel

2=Gold flash over 50u” Nickel
