CI16

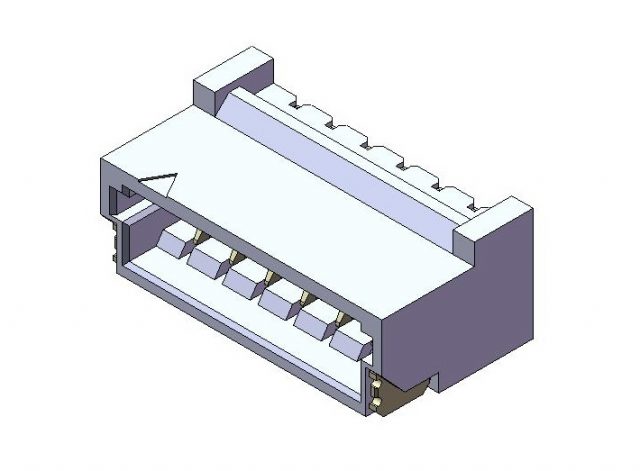

1.00mm(.039) Wire To Board SMT Side Entry Type Connector buy cheap generic levitra online
◎ Rated Current and Voltage : 1A AC(r.m.s)/DC (AWG#28) 125V AC(r.m.s) /DC
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞100MΩ
◎ Ambient Temperature : -25℃~ 85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen-Free
| CIRCUITS | 20CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Plated Over Nickel | ||
