CI16

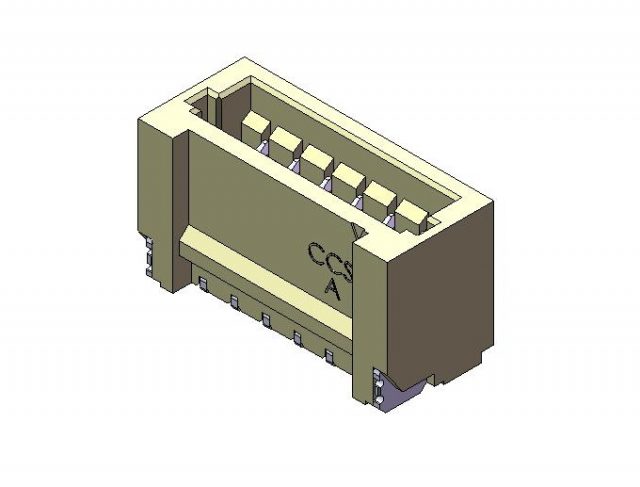

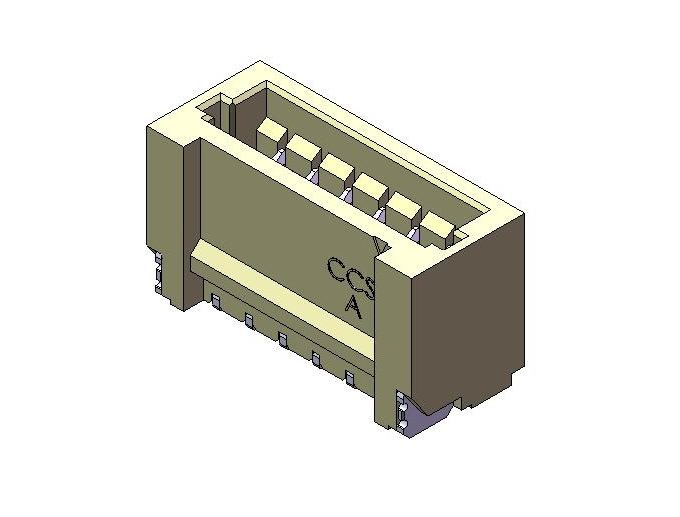

1.00mm(.039) Wire To Board SMT Top Entry Type Connector
◎ Rated Current and Voltage : 1.0A AC (r.m.s.)/DC(AWG#28)125V AC (r.m.s.)/DC
◎ Dielectric Withstanding Voltage : 500 V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞100MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen-Free
| CIRCUITS | 02 to 20CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin over Nickel Plated | ||
