CI08

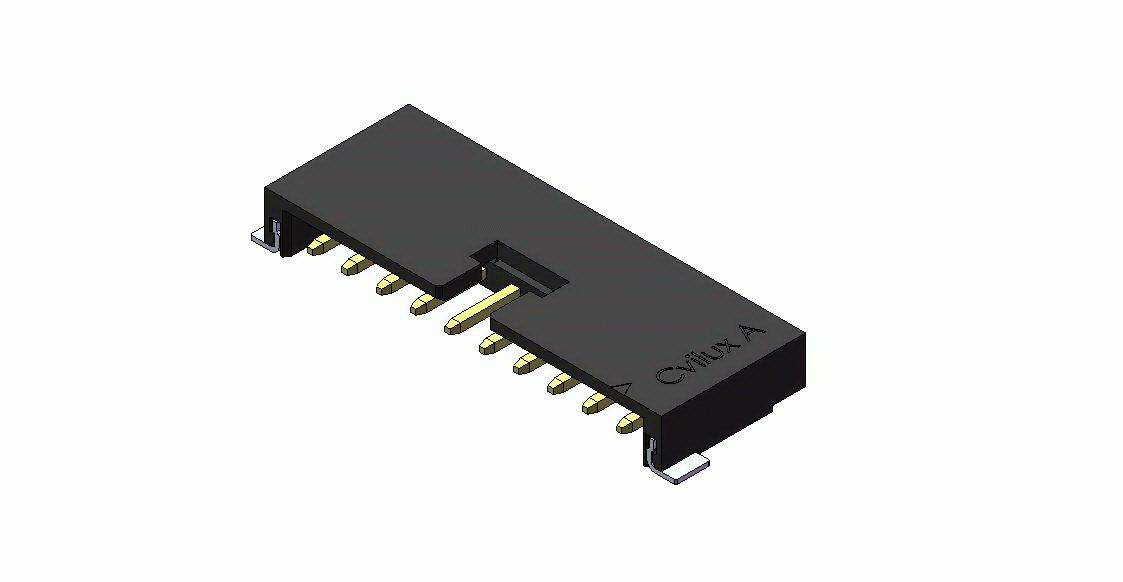

2.0mm(.079")Wire to Board Connectors DIP Headers
◎ Current rating : 3A 200V AC(AWG#26),2.5A 200V AC(AWG#28),1.5A 200V AC(AWG#30)
◎ Dielectric Withstanding Voltage : 500 V AC for one minute
◎ Contact Resistance : ＜25mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -40℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen-Free
| CIRCUITS | #26~#30CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1=Tin plated over Nickel 2=Gold flash plated over Nickel |
||
