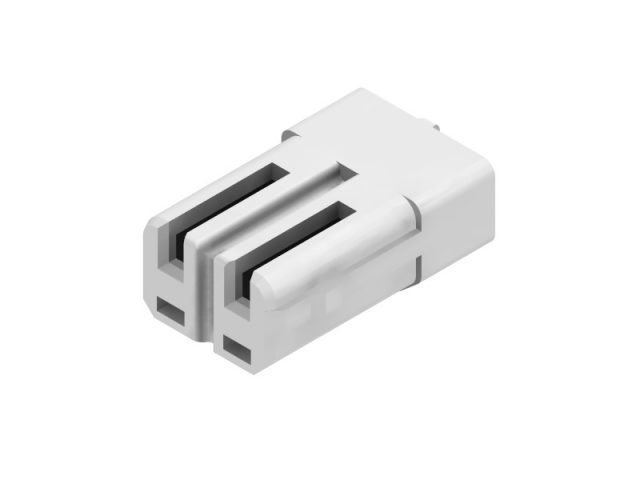

CI07
1.80mm Pitch Housing
◎ Rated Current and Voltage :
4.0A(AWG#22)350V AC/DC
◎ Dielectric Withstanding Voltage : 1700 V AC for one minute
◎ Contact Resistance : ＜10mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant
◎ Halogen-Free
| CIRCUITS | 02
CIRCUTS |
||
|---|---|---|---|
| Plating Code | – | ||
