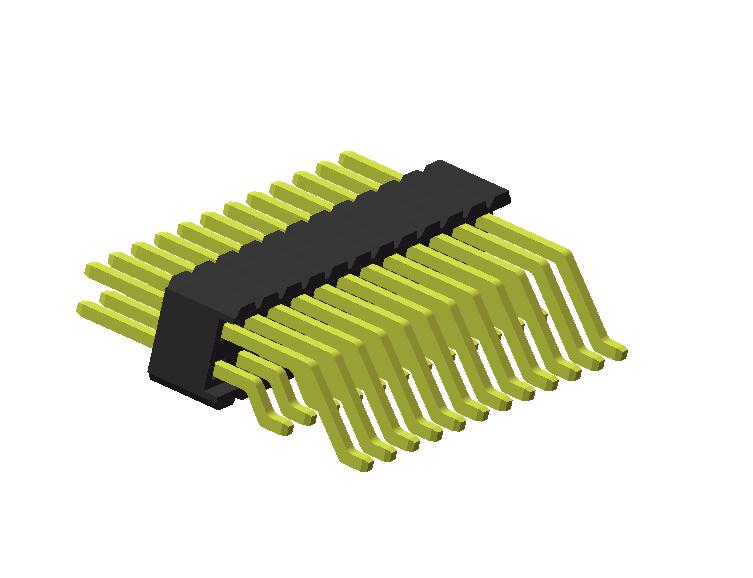

CH60
Right Angle Dual Row Board Mount Pin Header
◎ Rated Current and Voltage : 1A 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞5000MΩ
◎ Operating Temperature : -40℃ ~ 105℃
◎ RoHS Compliant
| CIRCUITS | 04~100 CIRCUTS | ||
|---|---|---|---|
| Plating Code | 2= Gold Flash Plated over 50μ” Nickel | ||
