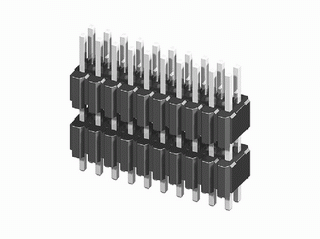

1.27mm Dual Row Dual Body Board Mount Pin Header

◎ Rated Current and Voltage : 1 A 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 600V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Operating Temperature : -40℃~ 105℃
RoHS Compliant

CIRCUITS 06 to 100 CIRCUTS
Plating Code 2= Gold Flash Plated over 50μ” Nickel

3= 15μ” Gold Plated over 50μ” Nickel

4= 30μ” Gold Plated over 50μ” Nickel
