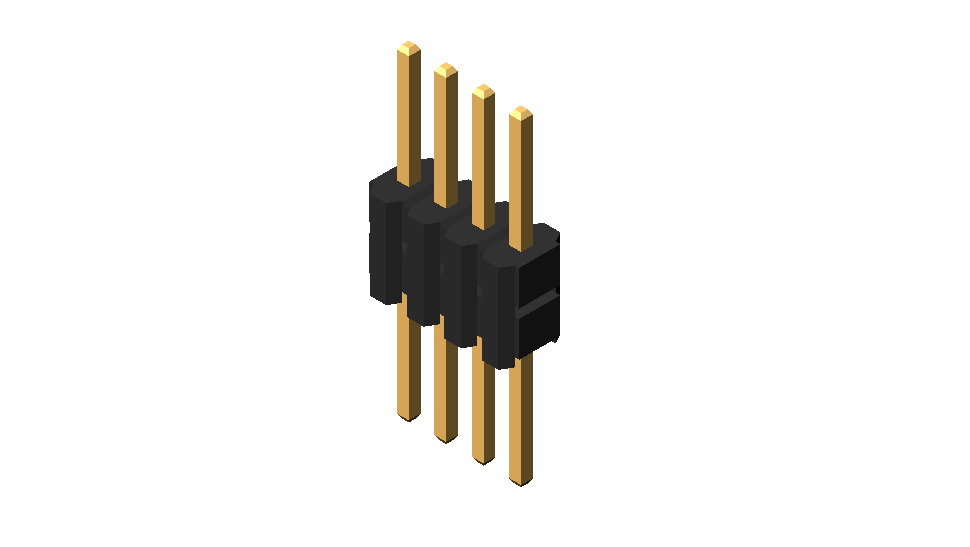

1.27mm Single Row Dual Body Board Mount Pin Header

◎ Rated current and voltage: 1A 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 600V AC for one minute
◎ Contact Resistance : <20mΩ
◎ Insulation Resistance : >1000MΩ
◎ Operating Temperature : -40℃ ~ 105℃
◎ RoHS Compliant

CIRCUITS 04 CIRCUTS
Plating Code 2= Gold Flash Plated over 50μ” Nickel
