CF55 | FPC/FFC连接器

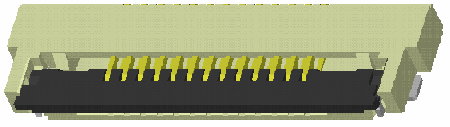

0.50mm(.020”)H=1.25 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)
◎ Rated Current and Voltage : 0.5Amp/50V AC/DC max.
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜80mΩ
◎ Insulation Resistance : ＞500MΩ
◎ Operating Temperature : -55℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
| CIRCUITS | 6 to 14(6,11,12) CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Plated over Nickel F= Selective Gold flash over Nickel |
||
