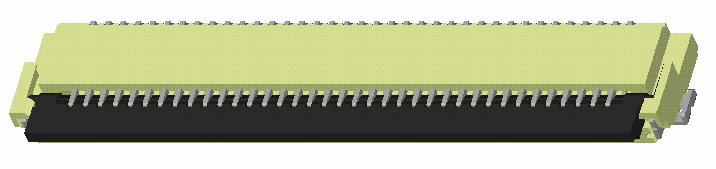

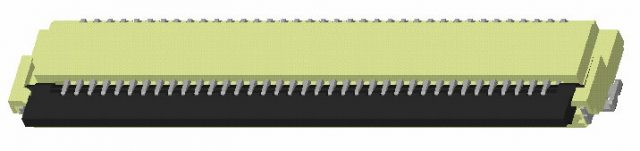

CF50 | FPC/FFC连接器
0.50mm(.020”)H=1.46 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)
◎ Rated Current and Voltage : 0.5Amp/50V AC/DC max.
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : ＜60mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -40℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen Free
| CIRCUITS | 4 to 61(9,13,17,29,37,53) CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Plated over Nickel F= Selective Gold flash over Nickel |
||
