CF32 | FPC/FFC连接器

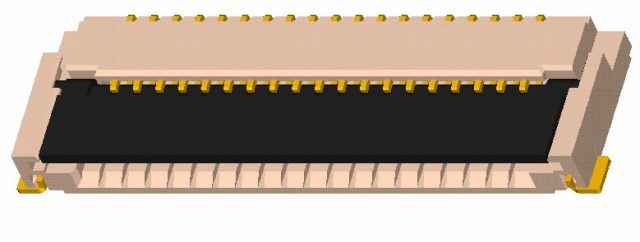

0.80mm(.032”)H=1.95 SMT ZIF ONE-TOUCH FFC/FPC Connectors(Halogen Free)

◎ Rated Current and Voltage : 0.5Amp/50V AC/DC max.
◎ Dielectric Withstanding Voltage : 500V AC for one minute
◎ Contact Resistance : <40mΩ
◎ Insulation Resistance : >500MΩ
◎ Operating Temperature : -40℃~85℃
◎ RoHS Compliant
◎ Lead Free Process
◎ Halogen Free

CIRCUITS 04 to 30(10,27,30) CIRCUTS
Plating Code 1= Matte Tin Plated over Nickel
2= Gold flash Plated over Nickel
